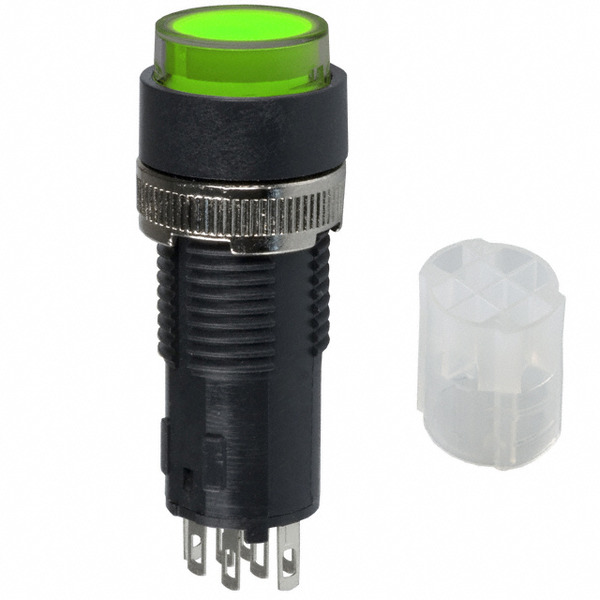

KB25CKW01-5F-JF
NKK Switches
Images are for reference only.
See Product Specifications for product details.
Buy KB25CKW01-5F-JF with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy KB25CKW01-5F-JF with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | KB25CKW01-5F-JF |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH PUSHBUTTON DPDT 1A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $10.80 | $9.99 | $9.72 | $9.18 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $8.91 | $8.37 | $7.83 | $7.425 | ||
Specifications
Data sheet
| Voltage Rating - DC: | 30V |
|---|---|
| Voltage Rating - AC: | 125V |
| Type: | Standard, Illuminated |
| Termination Style: | Solder Lug |
| Switch Function: | On-Mom |
| Series: | KB |
| Panel Cutout Dimensions: | Circular - 12.30mm Dia |
| Packaging: | Bulk |
| Other Names: | 360-1627 360-1627-ND 360-2004 KB25CKW01-5F-JF-RO KB25CKW015FJF |
| Operating Temperature: | -25°C ~ 50°C |
| Mounting Type: | Panel Mount, Front |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | 100,000 Cycles |
| Manufacturer Standard Lead Time: | 13 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Illumination Voltage (Nominal): | 2.1 VDC |
| Illumination Type, Color: | LED, Green |
| Features: | - |
| Electrical Life: | 50,000 Cycles |
| Detailed Description: | Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front |
| Current Rating: | 1A (AC/DC) |
| Color - Actuator/Cap: | Clear (Green Filter/Diffuser) |
| Circuit: | DPDT |
| Actuator Type: | Round, Button |
| Email: | info@cjjhk.com |
Introduce
We can supply KB25CKW01-5F-JF, use the request quote form to request KB25CKW01-5F-JF pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number KB25CKW01-5F-JF.The price and lead time for KB25CKW01-5F-JF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# KB25CKW01-5F-JF.We look forward to working with you to establish long-term relations of cooperation
