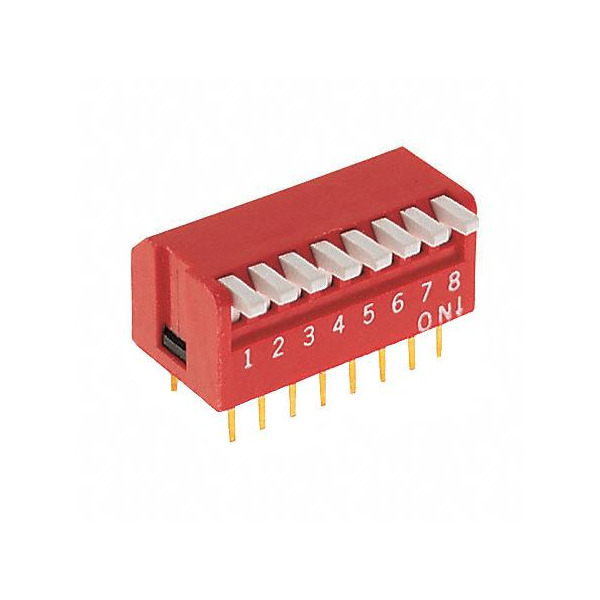

KAP1108RT
E-Switch
Images are for reference only.
See Product Specifications for product details.
Buy KAP1108RT with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy KAP1108RT with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | KAP1108RT |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH PIANO DIP SPST 25MA 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1008 pcs | ||||
|---|---|---|---|---|---|
| $1.20 | |||||
Specifications
Data sheet
| Washable: | Yes |
|---|---|
| Voltage Rating: | 24VDC |
| Termination Style: | PC Pin |
| Series: | KAP |
| Pitch: | 0.100" (2.54mm), Full |
| Packaging: | Tube |
| Operating Temperature: | -40°C ~ 85°C |
| Number of Positions: | 8 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | 2,000 Cycles |
| Manufacturer Standard Lead Time: | 11 Weeks |
| Length: | 0.861" (21.87mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height Above Board: | 0.402" (10.20mm) |
| Features: | Tape Seal |
| Electrical Life: | 2,000 Cycles |
| Detailed Description: | Dip Switch SPST 8 Position Through Hole, Right Angle Piano Actuator 25mA 24VDC |
| Current Rating: | 25mA |
| Contact Material: | Phosphor Bronze |
| Contact Finish: | Gold |
| Circuit: | SPST |
| Body Material: | Polybutylene Terephthalate (PBT), Glass Filled |
| Actuator Type: | Piano |
| Actuator Level: | Flush, Recessed |
| Email: | info@cjjhk.com |
Introduce
We can supply KAP1108RT, use the request quote form to request KAP1108RT pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number KAP1108RT.The price and lead time for KAP1108RT depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# KAP1108RT.We look forward to working with you to establish long-term relations of cooperation
