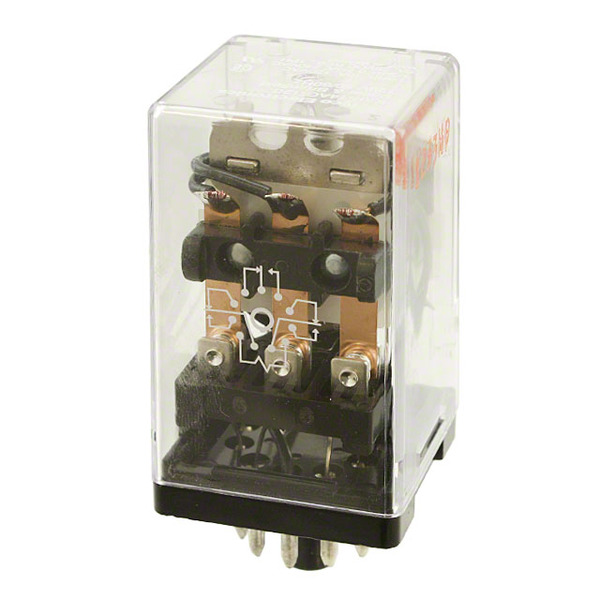

KAP-14AG-120
Agastat Relays / TE Connectivity
Images are for reference only.
See Product Specifications for product details.
Buy KAP-14AG-120 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy KAP-14AG-120 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | KAP-14AG-120 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE 3PDT 10A 120V |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $27.18 | $25.821 | $24.462 | $23.103 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $21.744 | $20.385 | $19.026 | |||
Specifications
Data sheet
| Turn On Voltage (Max): | 102 VAC |
|---|---|
| Turn Off Voltage (Min): | - |
| Termination Style: | Plug In, 11 Pin (Octal) |
| Switching Voltage: | 240VAC - Max |
| Series: | KAP |
| Relay Type: | General Purpose |
| Packaging: | Bulk |
| Other Names: | 1393100-2 1393100-2-ND 13931002 KAP-14AG-120-ND PB1424 |
| Operating Temperature: | -45°C ~ 70°C |
| Mounting Type: | Socketable |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 21 Weeks |
| Lead Free Status / RoHS Status: | Contains lead / RoHS Compliant |
| Features: | Insulation - Class B |
| Detailed Description: | General Purpose Relay 3PDT (3 Form C) 120VAC Coil Socketable |
| Contact Rating (Current): | 10A |
| Contact Material: | Silver Cadmium Oxide (AgCdO) |
| Contact Form: | 3PDT (3 Form C) |
| Coil Voltage: | 120VAC |
| Coil Type: | Non Latching |
| Coil Resistance: | 2.25 kOhms |
| Coil Power: | 2.1 VA |
| Coil Current: | 17.5mA |
| Email: | info@cjjhk.com |
Introduce
We can supply KAP-14AG-120, use the request quote form to request KAP-14AG-120 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number KAP-14AG-120.The price and lead time for KAP-14AG-120 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# KAP-14AG-120.We look forward to working with you to establish long-term relations of cooperation
