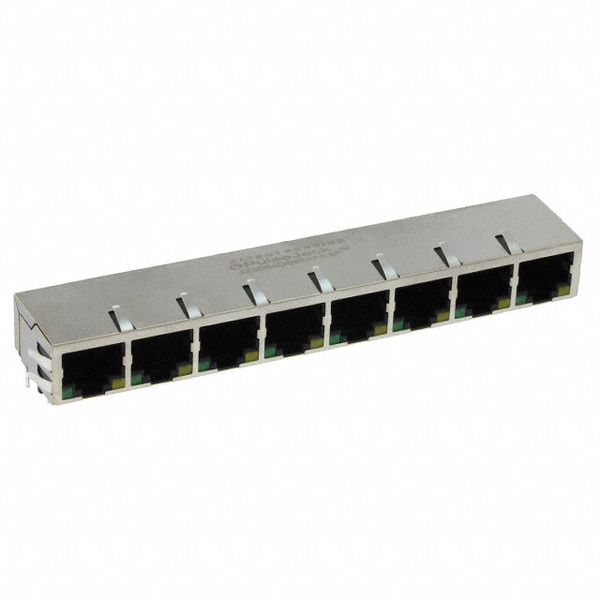

JX8064D688ANL
Pulse Electronics Corporation
Images are for reference only.
See Product Specifications for product details.
Buy JX8064D688ANL with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy JX8064D688ANL with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | JX8064D688ANL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CONN MAGJACK 8PORT 100 BASE-TX |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $42.70 | $40.192 | $38.936 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $36.424 | $34.414 | $33.41 | |||
Specifications
Data sheet
| Termination: | Solder |
|---|---|
| Tab Direction: | Down |
| Shielding: | Shielded, EMI Finger |
| Shield Material: | Brass |
| Series: | PULSEJACK™ JX80 |
| Packaging: | Bulk |
| Other Names: | 553-2620 JX8064D688ANL-ND |
| Orientation: | 90° Angle (Right) |
| Operating Temperature: | -40°C ~ 85°C |
| Number of Rows: | 1 |
| Number of Ports: | 8 |
| Number of Cores per Jack: | 4 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| LED Color: | Green - Yellow |
| Housing Material: | Thermoplastic |
| Height Above Board: | 0.536" (13.61mm) |
| Features: | Board Guide |
| Detailed Description: | 8 Port RJ45 Magjack Connector Through Hole 10/100 Base-TX, AutoMDIX |
| Contact Material: | Phosphor Bronze |
| Contact Finish Thickness: | 30.0µin (0.76µm) |
| Contact Finish: | Gold |
| Connector Type: | RJ45 |
| Applications: | 10/100 Base-TX, AutoMDIX |
| Email: | info@cjjhk.com |
Introduce
We can supply JX8064D688ANL, use the request quote form to request JX8064D688ANL pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number JX8064D688ANL.The price and lead time for JX8064D688ANL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# JX8064D688ANL.We look forward to working with you to establish long-term relations of cooperation
