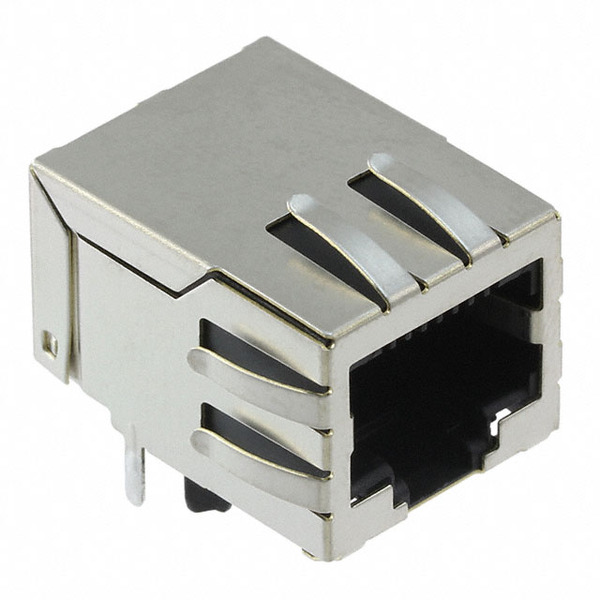

JX0026D21NL
Pulse Electronics Corporation
Images are for reference only.
See Product Specifications for product details.
Buy JX0026D21NL with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy JX0026D21NL with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | JX0026D21NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CONN MAGJACK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $7.56 | $7.245 | $6.615 | $6.30 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $5.985 | $5.355 | $5.04 | $4.41 | ||
Specifications
Data sheet
| Termination: | Solder |
|---|---|
| Tab Direction: | Down |
| Shielding: | Shielded, EMI Finger |
| Shield Material: | Brass |
| Series: | PULSEJACK™ JX0 |
| Packaging: | Bulk |
| Other Names: | 553-2728 553-2728-5 553-2728-ND JX0026D21NL-ND |
| Orientation: | 90° Angle (Right) |
| Operating Temperature: | -40°C ~ 85°C |
| Number of Rows: | 1 |
| Number of Ports: | 1 |
| Number of Cores per Jack: | 5 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| LED Color: | Does Not Contain LED |
| Housing Material: | Thermoplastic |
| Height Above Board: | 0.545" (13.84mm) |
| Features: | Board Guide |
| Detailed Description: | 1 Port RJ45 Magjack Connector Through Hole 10/100 Base-TX |
| Contact Material: | Phosphor Bronze |
| Contact Finish Thickness: | 15.0µin (0.38µm) |
| Contact Finish: | Gold |
| Connector Type: | RJ45 |
| Applications: | 10/100 Base-TX |
| Email: | info@cjjhk.com |
Introduce
We can supply JX0026D21NL, use the request quote form to request JX0026D21NL pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number JX0026D21NL.The price and lead time for JX0026D21NL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# JX0026D21NL.We look forward to working with you to establish long-term relations of cooperation
