JS1F-B-24V-F
Panasonic

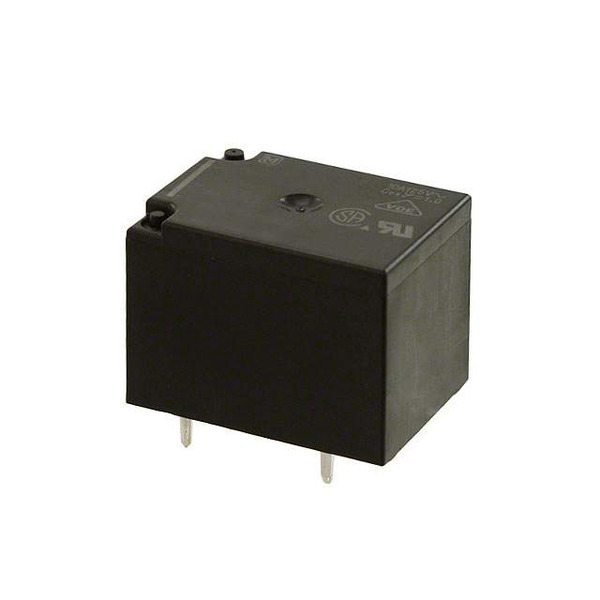

Images are for reference only.
See Product Specifications for product details.
Buy JS1F-B-24V-F with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy JS1F-B-24V-F with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | JS1F-B-24V-F |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE SPDT 10A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.92 | $1.80 | $1.60 | $1.52 | $1.44 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $1.28 | $1.20 | $1.12 | $1.08 | ||
Specifications
Data sheet
| Turn On Voltage (Max): | 16.8 VDC |
|---|---|
| Turn Off Voltage (Min): | 2.4 VDC |
| Termination Style: | PC Pin |
| Switching Voltage: | 250VAC, 100VDC - Max |
| Series: | JS |
| Release Time: | 10ms |
| Relay Type: | General Purpose |
| Packaging: | Bulk |
| Other Names: | 255-3618 JS1FB24VF |
| Operating Temperature: | -40°C ~ 85°C |
| Operate Time: | 10ms |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Features: | Insulation - Class B, Sealed - Flux Protection |
| Detailed Description: | General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole |
| Contact Rating (Current): | 10A |
| Contact Material: | Silver Tin Oxide (AgSnO) |
| Contact Form: | SPDT (1 Form C) |
| Coil Voltage: | 24VDC |
| Coil Type: | Non Latching |
| Coil Resistance: | 1.6 kOhms |
| Coil Power: | 360 mW |
| Coil Current: | 15.0mA |
| Email: | info@cjjhk.com |
Introduce
We can supply JS1F-B-24V-F, use the request quote form to request JS1F-B-24V-F pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number JS1F-B-24V-F.The price and lead time for JS1F-B-24V-F depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# JS1F-B-24V-F.We look forward to working with you to establish long-term relations of cooperation
