JN2FW15SL1
JAE Electronics, Inc.

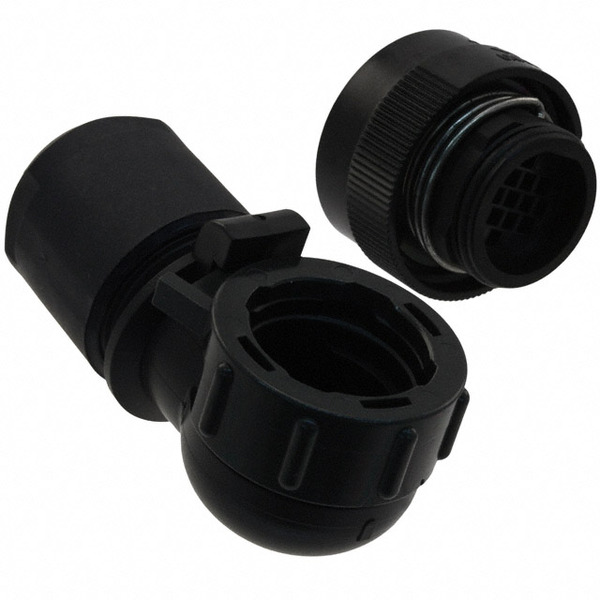

Images are for reference only.
See Product Specifications for product details.
Buy JN2FW15SL1 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy JN2FW15SL1 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | JN2FW15SL1 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN PLG HSG FMAL 15PS INLINE RA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $30.38 | $27.421 | $26.272 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $24.63 | $23.809 | $22.495 | |||
Specifications
Data sheet
| Type: | For Female Sockets |
|---|---|
| Shielding: | Unshielded |
| Shell Size, MIL: | - |
| Shell Size - Insert: | W |
| Shell Material: | Zinc Alloy |
| Shell Finish: | Zinc |
| Series: | JN2W |
| Packaging: | Bulk |
| Other Names: | 670-2425 JN2FW15SL1-ND |
| Orientation: | N (Normal) |
| Operating Temperature: | -20°C ~ 100°C |
| Number of Positions: | 15 |
| Note: | Contacts Not Included |
| Mounting Type: | Free Hanging (In-Line), Right Angle |
| Mounting Feature: | - |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | - |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insert Material: | Synthetic Resin |
| Ingress Protection: | IP67 - Dust Tight, Waterproof |
| Includes: | - |
| Housing Color: | Black |
| Features: | Backshell, Coupling Nut, Rotatable |
| Fastening Type: | Push-Twist |
| Detailed Description: | 15 Position Circular Connector Plug Housing Free Hanging (In-Line), Right Angle Backshell, Coupling Nut, Rotatable |
| Coupling Nut Material, Plating: | Zinc Alloy, Zinc |
| Coupling Nut Diameter: | 1.031" (26.19mm) |
| Contact Type: | Crimp |
| Contact Size: | 22 |
| Contact Shape: | Circular |
| Connector Type: | Plug Housing |
| Email: | info@cjjhk.com |
Introduce
We can supply JN2FW15SL1, use the request quote form to request JN2FW15SL1 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number JN2FW15SL1.The price and lead time for JN2FW15SL1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# JN2FW15SL1.We look forward to working with you to establish long-term relations of cooperation
