JN1HS04MK1-R
JAE Electronics, Inc.

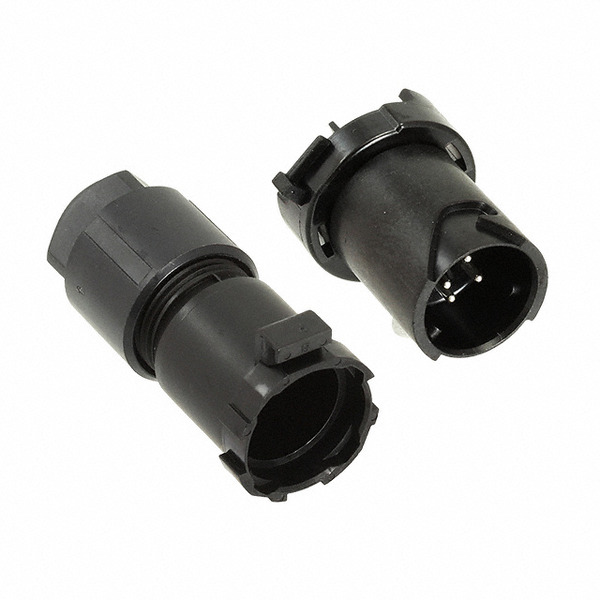

Images are for reference only.
See Product Specifications for product details.
Buy JN1HS04MK1-R with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy JN1HS04MK1-R with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | JN1HS04MK1-R |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN RCPT MALE 4POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $15.95 | $14.50 | $14.138 | $13.05 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $12.325 | $11.238 | $10.513 | $9.643 | ||
Specifications
Data sheet
| Voltage Rating: | 200VAC |
|---|---|
| Termination: | Solder Cup |
| Shielding: | - |
| Shell Size, MIL: | - |
| Shell Size - Insert: | S |
| Shell Material: | Synthetic Resin |
| Shell Finish: | - |
| Series: | JN1 |
| Packaging: | Bulk |
| Other Names: | 670-2612 JN1HS04MK1R |
| Orientation: | N (Normal) |
| Operating Temperature: | -20°C ~ 125°C |
| Number of Positions: | 4 (3 + PE) |
| Mounting Type: | Free Hanging (In-Line) |
| Mounting Feature: | - |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | - |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insert Material: | Synthetic Resin |
| Ingress Protection: | IP67 - Dust Tight, Waterproof |
| Features: | Backshell |
| Fastening Type: | Push-Twist |
| Detailed Description: | 4 (3 + PE) Position Circular Connector Receptacle, Male Pins Solder Cup Silver |
| Current Rating: | 5A |
| Contact Material: | Copper Alloy |
| Contact Finish Thickness - Mating: | - |
| Contact Finish - Mating: | Silver |
| Connector Type: | Receptacle, Male Pins |
| Color: | Black |
| Cable Opening: | 0.224" ~ 0.287" (5.70mm ~ 7.30mm) |
| Backshell Material, Plating: | Synthetic Resin |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply JN1HS04MK1-R, use the request quote form to request JN1HS04MK1-R pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number JN1HS04MK1-R.The price and lead time for JN1HS04MK1-R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# JN1HS04MK1-R.We look forward to working with you to establish long-term relations of cooperation
