JMAW-26XP
Agastat Relays / TE Connectivity

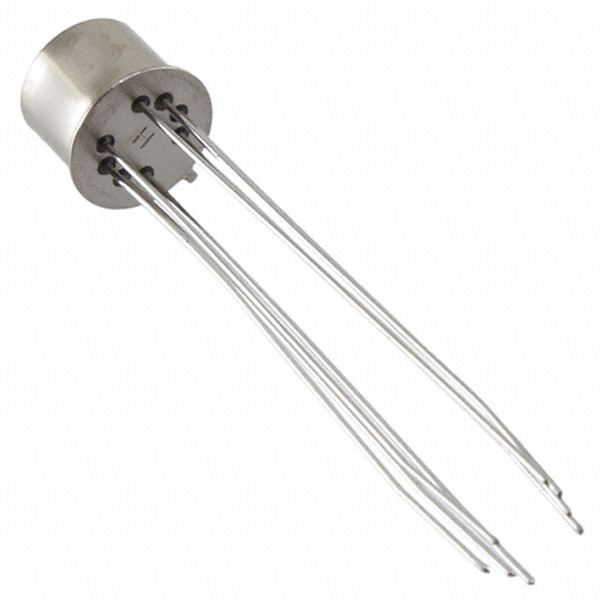

Images are for reference only.
See Product Specifications for product details.
Buy JMAW-26XP with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy JMAW-26XP with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | JMAW-26XP |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE DPDT 1A 28V |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 10 pcs | ||||
|---|---|---|---|---|---|
| $107.27 | |||||
Specifications
Data sheet
| Turn On Voltage (Max): | 14.2 VDC |
|---|---|
| Turn Off Voltage (Min): | 1.37 VDC |
| Termination Style: | PC Pin |
| Switching Voltage: | 28VDC - Nom |
| Series: | Military, MIL-R-39016/9, MA, CII |
| Release Time: | 1.5ms |
| Relay Type: | General Purpose |
| Packaging: | Bulk |
| Other Names: | 1122-1070 1122-1070-MIL 1617125-7 A101628 A101628-ND JMAW26XP M39016/9-018P |
| Operating Temperature: | -65°C ~ 125°C |
| Operate Time: | 2ms |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Features: | Sealed - Hermetically |
| Detailed Description: | General Purpose Relay DPDT (2 Form C) Through Hole |
| Contact Rating (Current): | 1A |
| Contact Material: | - |
| Contact Form: | DPDT (2 Form C) |
| Coil Voltage: | 26.5VDC |
| Coil Type: | Non Latching |
| Coil Resistance: | 1.56 kOhms |
| Coil Power: | 450 mW |
| Coil Current: | 17.0mA |
| Email: | info@cjjhk.com |
Introduce
We can supply JMAW-26XP, use the request quote form to request JMAW-26XP pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number JMAW-26XP.The price and lead time for JMAW-26XP depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# JMAW-26XP.We look forward to working with you to establish long-term relations of cooperation
