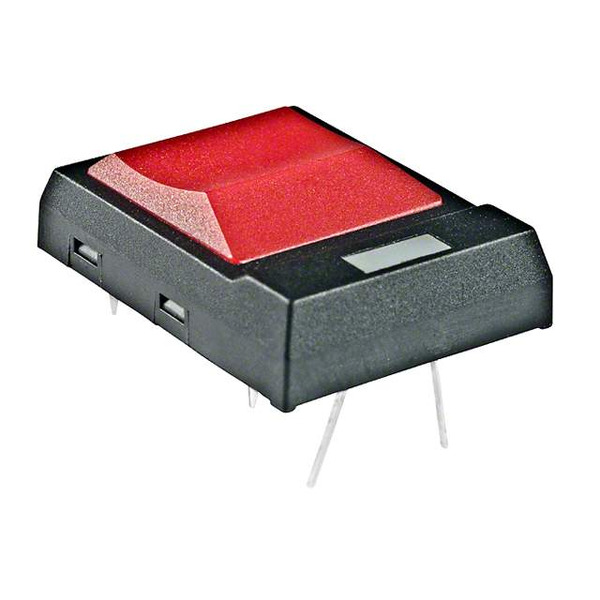

JF15RP3CF
NKK Switches
Images are for reference only.
See Product Specifications for product details.
Buy JF15RP3CF with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy JF15RP3CF with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | JF15RP3CF |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH TACTILE SPST-NO 0.05A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.37 | $4.16 | $3.952 | $3.848 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.536 | $3.328 | $3.016 | $2.86 | ||
Specifications
Data sheet
| Termination Style: | PC Pin |
|---|---|
| Switch Travel: | 0.80mm |
| Switch Function: | Off-Mom |
| Series: | JF |
| Packaging: | Tray |
| Outline: | 22.80mm x 17.70mm |
| Operating Temperature: | -25°C ~ 70°C |
| Operating Force: | 200gf |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | 500,000 Cycles |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Illumination Voltage (Nominal): | 2.2 VDC |
| Illumination Type, Color: | LED, Green |
| Illumination: | Illuminated |
| Features: | Process Sealed |
| Detailed Description: | Tactile Switch SPST-NO Top Actuated Through Hole |
| Contact Rating @ Voltage: | 0.05A @ 24VDC |
| Circuit: | SPST-NO |
| Actuator Type: | Square Button |
| Actuator Orientation: | Top Actuated |
| Actuator Material: | Polyamide (PA), Nylon |
| Actuator Length, Right Angle: | - |
| Actuator Height off PCB, Vertical: | 6.78mm |
| Email: | info@cjjhk.com |
Introduce
We can supply JF15RP3CF, use the request quote form to request JF15RP3CF pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number JF15RP3CF.The price and lead time for JF15RP3CF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# JF15RP3CF.We look forward to working with you to establish long-term relations of cooperation
