JANTX2N3792
Microsemi

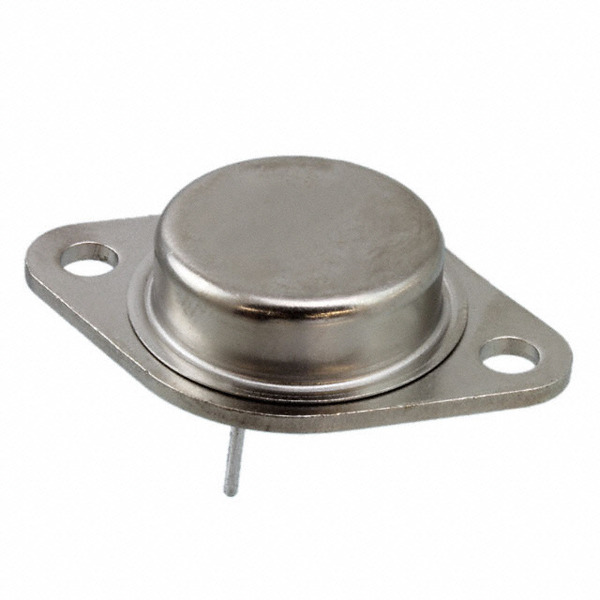

Images are for reference only.
See Product Specifications for product details.
Buy JANTX2N3792 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy JANTX2N3792 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | JANTX2N3792 |
|---|---|
| Manufacturer | Microsemi |
| Description | TRANS PNP 80V 10A TO-3 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $77.618 | |||||
Specifications
Data sheet
| Voltage - Collector Emitter Breakdown (Max): | 80V |
|---|---|
| Vce Saturation (Max) @ Ib, Ic: | 2.5V @ 2A, 10A |
| Transistor Type: | PNP |
| Supplier Device Package: | TO-3 |
| Series: | Military, MIL-PRF-19500/379 |
| Power - Max: | 5W |
| Packaging: | Bulk |
| Package / Case: | TO-204AA, TO-3 |
| Other Names: | 1086-15516 1086-15516-MIL |
| Operating Temperature: | -65°C ~ 200°C (TJ) |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 20 Weeks |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Frequency - Transition: | - |
| Detailed Description: | Bipolar (BJT) Transistor PNP 80V 10A 5W Through Hole TO-3 |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 30 @ 3A, 2V |
| Current - Collector Cutoff (Max): | 5mA |
| Current - Collector (Ic) (Max): | 10A |
| Email: | info@cjjhk.com |
Introduce
We can supply JANTX2N3792, use the request quote form to request JANTX2N3792 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number JANTX2N3792.The price and lead time for JANTX2N3792 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# JANTX2N3792.We look forward to working with you to establish long-term relations of cooperation
