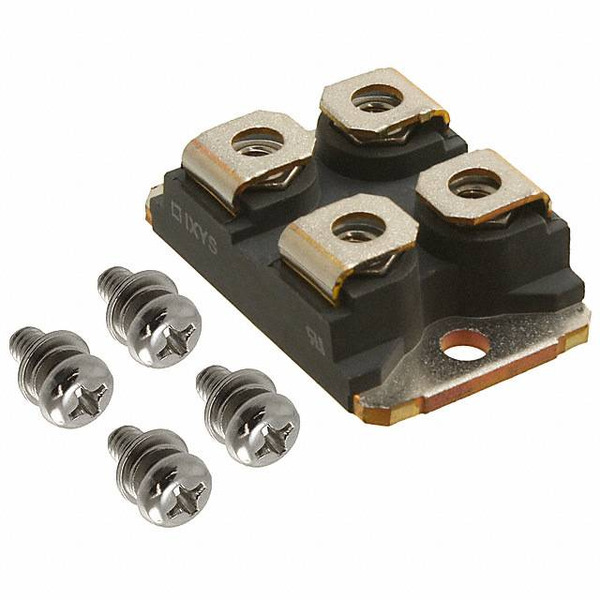

IXDN75N120
IXYS Corporation
Images are for reference only.
See Product Specifications for product details.
Buy IXDN75N120 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy IXDN75N120 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | IXDN75N120 |
|---|---|
| Manufacturer | IXYS Corporation |
| Description | IGBT 1200V 150A SOT-227B |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $35.98 | $33.282 | $30.583 | $28.424 | $26.086 | |
Specifications
Data sheet
| Voltage - Collector Emitter Breakdown (Max): | 1200V |
|---|---|
| Vce(on) (Max) @ Vge, Ic: | 2.7V @ 15V, 75A |
| Supplier Device Package: | SOT-227B |
| Series: | - |
| Power - Max: | 660W |
| Package / Case: | SOT-227-4, miniBLOC |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| NTC Thermistor: | No |
| Mounting Type: | Chassis Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 32 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Capacitance (Cies) @ Vce: | 5.5nF @ 25V |
| Input: | Standard |
| IGBT Type: | NPT |
| Detailed Description: | IGBT Module NPT Single 1200V 150A 660W Chassis Mount SOT-227B |
| Current - Collector Cutoff (Max): | 4mA |
| Current - Collector (Ic) (Max): | 150A |
| Configuration: | Single |
| Email: | info@cjjhk.com |
Introduce
We can supply IXDN75N120, use the request quote form to request IXDN75N120 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXDN75N120.The price and lead time for IXDN75N120 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IXDN75N120.We look forward to working with you to establish long-term relations of cooperation
