ISL8225MIRZ
Renesas Electronics America

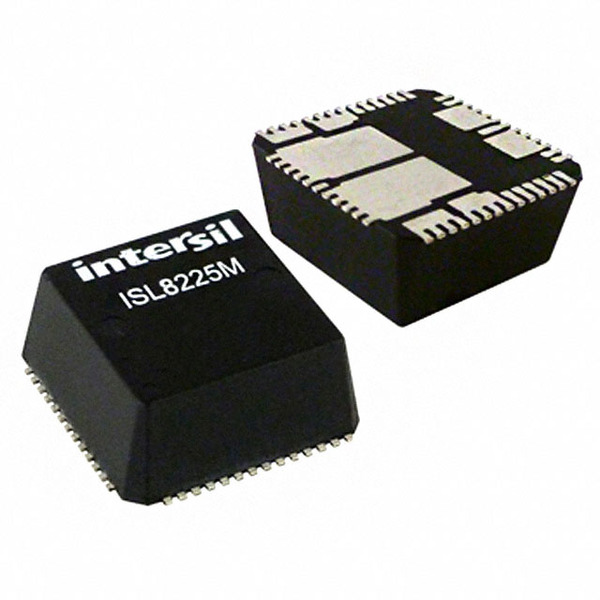

Images are for reference only.
See Product Specifications for product details.
Buy ISL8225MIRZ with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ISL8225MIRZ with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ISL8225MIRZ |
|---|---|
| Manufacturer | Renesas |
| Description | Dual 15A Dc/dc Step Down Power Supply Module With Bridge Ind / Tape & Reel Rohs Compliant: Yes |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $48.019 | $43.345 | $39.095 | $38.246 | ||
Specifications
Data sheet
| Voltage - Output 3: | - |
|---|---|
| Voltage - Output 2: | 0.6 ~ 6 V |
| Voltage - Output 1: | 0.6 ~ 6 V |
| Voltage - Input (Min): | 4.5V |
| Voltage - Input (Max): | 20V |
| Type: | Non-Isolated PoL Module |
| Supplier Device Package: | 26-QFN (17x17) |
| Size / Dimension: | 0.67" L x 0.67" W x 0.30" H (17.0mm x 17.0mm x 7.5mm) |
| Series: | - |
| Packaging: | Tray |
| Package / Case: | 26-PowerBQFN Module |
| Operating Temperature: | -40°C ~ 125°C |
| Number of Outputs: | 2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 4 (72 Hours) |
| Manufacturer Standard Lead Time: | 13 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Features: | Remote On/Off, OCP, OTP, OVP, UVLO |
| Efficiency: | 95% |
| Detailed Description: | Non-Isolated PoL Module DC DC Converter 2 Output 0.6 ~ 6 V 0.6 ~ 6 V 15A, 15A 4.5V - 20V Input |
| Current - Output (Max): | 15A, 15A |
| Base Part Number: | ISL8225 |
| Applications: | ITE (Commercial) |
| Email: | info@cjjhk.com |
Introduce
We can supply ISL8225MIRZ, use the request quote form to request ISL8225MIRZ pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ISL8225MIRZ.The price and lead time for ISL8225MIRZ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ISL8225MIRZ.We look forward to working with you to establish long-term relations of cooperation
