ISL80138IVEAJZ-T
Renesas Electronics America

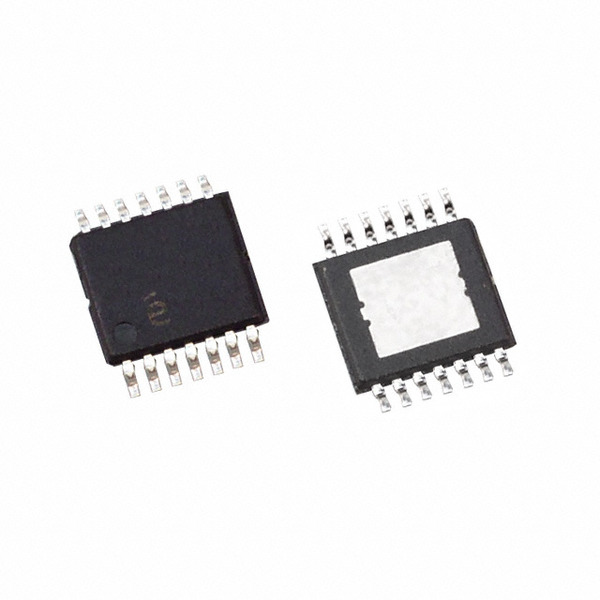

Images are for reference only.
See Product Specifications for product details.
Buy ISL80138IVEAJZ-T with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ISL80138IVEAJZ-T with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ISL80138IVEAJZ-T |
|---|---|
| Manufacturer | Renesas |
| Description | ISL80136 Series 2.5 to 12 V ADJ Output 150 mA LDO Linear Regulator HTSSOP-14 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.627 | $1.469 | $1.325 | $1.296 | ||
Specifications
Data sheet
| Voltage Dropout (Max): | 0.507V @ 150mA |
|---|---|
| Voltage - Output (Min/Fixed): | 2.5V |
| Voltage - Output (Max): | 12V |
| Voltage - Input (Max): | 40V |
| Supplier Device Package: | 14-HTSSOP |
| Series: | - |
| Protection Features: | Over Current, Over Temperature, Soft Start |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| PSRR: | 66dB (100Hz) |
| Output Type: | Adjustable |
| Output Configuration: | Positive |
| Operating Temperature: | -40°C ~ 125°C |
| Number of Regulators: | 1 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Manufacturer Standard Lead Time: | 15 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Detailed Description: | Linear Voltage Regulator IC Positive Adjustable 1 Output 2.5 V ~ 12 V 150mA 14-HTSSOP |
| Current - Supply (Max): | 125µA |
| Current - Quiescent (Iq): | 24µA |
| Current - Output: | 150mA |
| Control Features: | Enable |
| Base Part Number: | ISL80138 |
| Email: | info@cjjhk.com |
Introduce
We can supply ISL80138IVEAJZ-T, use the request quote form to request ISL80138IVEAJZ-T pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ISL80138IVEAJZ-T.The price and lead time for ISL80138IVEAJZ-T depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ISL80138IVEAJZ-T.We look forward to working with you to establish long-term relations of cooperation
