IRLML9303TRPBF
International Rectifier (Infineon Technologies)

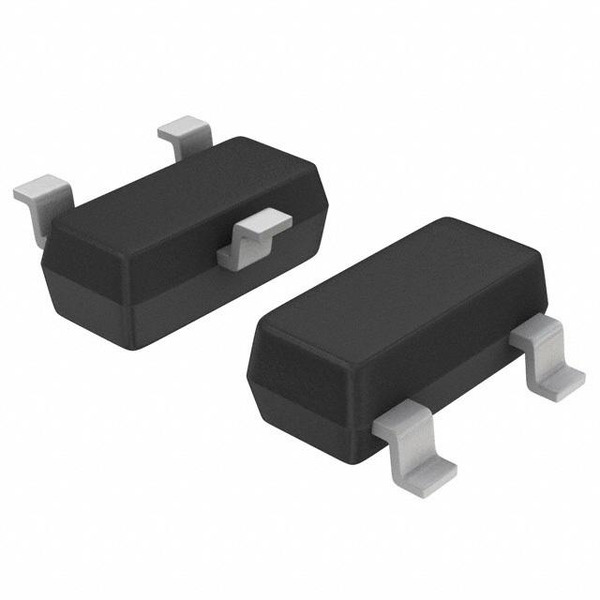

Images are for reference only.
See Product Specifications for product details.
Buy IRLML9303TRPBF with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy IRLML9303TRPBF with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | IRLML9303TRPBF |
|---|---|
| Manufacturer | Infineon |
| Description | -30V Single P-Channel HEXFET Power MOSFET in a Micro3 package, SOT23-3, RoHS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.157 | $0.142 | $0.128 | $0.125 | ||
Specifications
Data sheet
| Vgs(th) (Max) @ Id: | 2.4V @ 10µA |
|---|---|
| Vgs (Max): | ±20V |
| Technology: | MOSFET (Metal Oxide) |
| Supplier Device Package: | Micro3™/SOT-23 |
| Series: | HEXFET® |
| Rds On (Max) @ Id, Vgs: | 165 mOhm @ 2.3A, 10V |
| Power Dissipation (Max): | 1.25W (Ta) |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | TO-236-3, SC-59, SOT-23-3 |
| Other Names: | IRLML9303TRPBF-ND IRLML9303TRPBFTR SP001558866 |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds: | 160pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs: | 2nC @ 4.5V |
| FET Type: | P-Channel |
| FET Feature: | - |
| Drive Voltage (Max Rds On, Min Rds On): | 4.5V, 10V |
| Drain to Source Voltage (Vdss): | 30V |
| Detailed Description: | P-Channel 30V 2.3A (Ta) 1.25W (Ta) Surface Mount Micro3™/SOT-23 |
| Current - Continuous Drain (Id) @ 25°C: | 2.3A (Ta) |
| Email: | info@cjjhk.com |
Introduce
We can supply IRLML9303TRPBF, use the request quote form to request IRLML9303TRPBF pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRLML9303TRPBF.The price and lead time for IRLML9303TRPBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRLML9303TRPBF.We look forward to working with you to establish long-term relations of cooperation
