IRG4PSH71UDPBF
International Rectifier (Infineon Technologies)

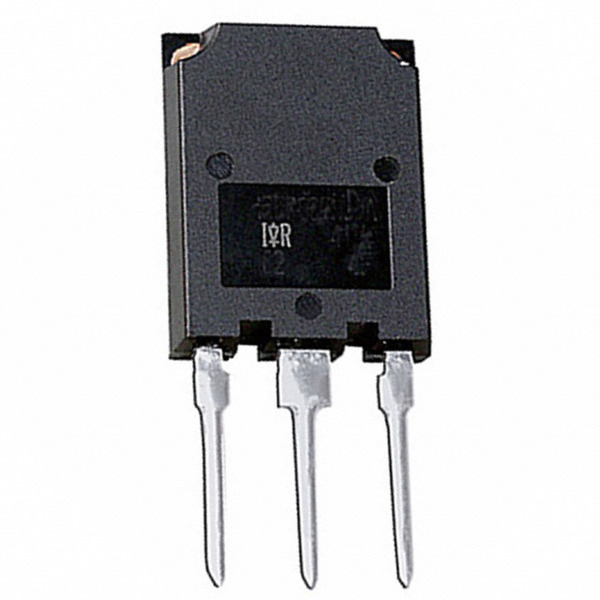

Images are for reference only.
See Product Specifications for product details.
Buy IRG4PSH71UDPBF with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy IRG4PSH71UDPBF with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | IRG4PSH71UDPBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IGBT 1200V 99A 350W SUPER247 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $14.64 | $13.457 | $11.365 | |||
Specifications
Data sheet
| Voltage - Collector Emitter Breakdown (Max): | 1200V |
|---|---|
| Vce(on) (Max) @ Vge, Ic: | 2.7V @ 15V, 70A |
| Test Condition: | 960V, 70A, 5 Ohm, 15V |
| Td (on/off) @ 25°C: | 46ns/250ns |
| Switching Energy: | 8.8mJ (on), 9.4mJ (off) |
| Supplier Device Package: | SUPER-247 (TO-274AA) |
| Series: | - |
| Reverse Recovery Time (trr): | 110ns |
| Power - Max: | 350W |
| Packaging: | Bulk |
| Package / Case: | TO-274AA |
| Other Names: | *IRG4PSH71UDPBF SP001547822 |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Type: | Standard |
| IGBT Type: | - |
| Gate Charge: | 380nC |
| Detailed Description: | IGBT 1200V 99A 350W Through Hole SUPER-247 (TO-274AA) |
| Current - Collector Pulsed (Icm): | 200A |
| Current - Collector (Ic) (Max): | 99A |
| Email: | info@cjjhk.com |
Introduce
We can supply IRG4PSH71UDPBF, use the request quote form to request IRG4PSH71UDPBF pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRG4PSH71UDPBF.The price and lead time for IRG4PSH71UDPBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRG4PSH71UDPBF.We look forward to working with you to establish long-term relations of cooperation
