IRF630L
Electro-Films (EFI) / Vishay

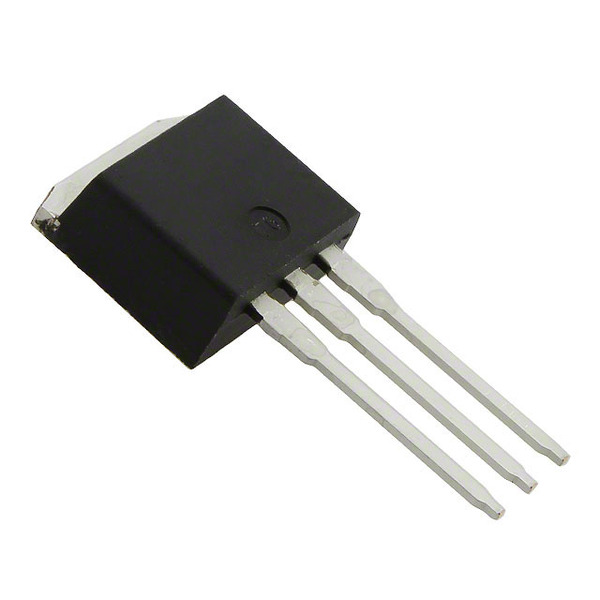

Images are for reference only.
See Product Specifications for product details.
Buy IRF630L with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy IRF630L with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | IRF630L |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | MOSFET N-CH 200V 9A TO-262 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 700 pcs | ||||
|---|---|---|---|---|---|
| $0.83 | |||||
Specifications
Data sheet
| Vgs(th) (Max) @ Id: | 4V @ 250µA |
|---|---|
| Vgs (Max): | ±20V |
| Technology: | MOSFET (Metal Oxide) |
| Supplier Device Package: | I2PAK |
| Series: | - |
| Rds On (Max) @ Id, Vgs: | 400 mOhm @ 5.4A, 10V |
| Power Dissipation (Max): | - |
| Packaging: | Tube |
| Package / Case: | TO-262-3 Long Leads, I²Pak, TO-262AA |
| Other Names: | *IRF630L |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Input Capacitance (Ciss) (Max) @ Vds: | 800pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs: | 43nC @ 10V |
| FET Type: | N-Channel |
| FET Feature: | - |
| Drive Voltage (Max Rds On, Min Rds On): | 10V |
| Drain to Source Voltage (Vdss): | 200V |
| Detailed Description: | N-Channel 200V 9A (Tc) Through Hole I2PAK |
| Current - Continuous Drain (Id) @ 25°C: | 9A (Tc) |
| Email: | info@cjjhk.com |
Introduce
We can supply IRF630L, use the request quote form to request IRF630L pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRF630L.The price and lead time for IRF630L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRF630L.We look forward to working with you to establish long-term relations of cooperation
