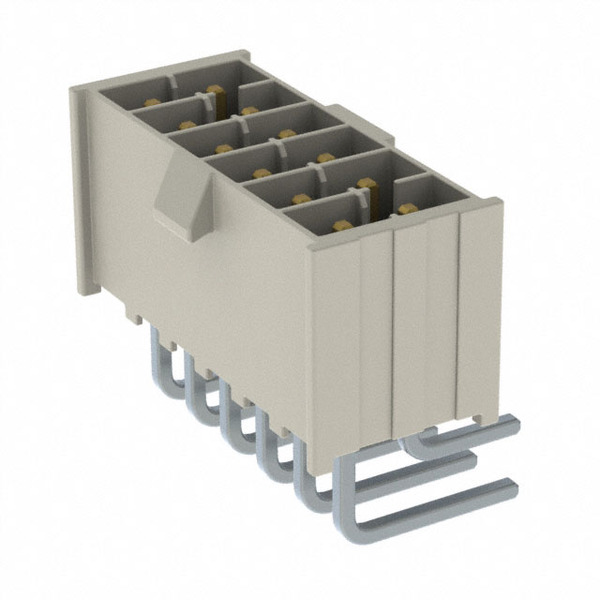

IPL1-106-01-L-D-RA-K
Samtec, Inc.
Images are for reference only.
See Product Specifications for product details.
Buy IPL1-106-01-L-D-RA-K with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy IPL1-106-01-L-D-RA-K with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | IPL1-106-01-L-D-RA-K |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .100 TERMINAL ASSEMBLY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 34 pcs | 102 pcs | ||
|---|---|---|---|---|---|
| $3.63 | $3.19 | $2.90 | |||
| 510 pcs | 1020 pcs | 5032 pcs | |||
| $2.465 | $2.103 | $1.885 | |||
Specifications
Data sheet
| Voltage Rating: | 675VAC, 954VDC |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | Mini Mate® IPL1 |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Tube |
| Overall Contact Length: | - |
| Other Names: | IPL1-106-01-L-D-RA-K-ND SAM10583 |
| Operating Temperature: | -55°C ~ 125°C |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 12 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 3 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Liquid Crystal Polymer (LCP) |
| Insulation Height: | 0.290" (7.37mm) |
| Insulation Color: | Natural |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Locking Ramp |
| Detailed Description: | Connector Header Through Hole, Right Angle 12 position 0.100" (2.54mm) |
| Current Rating: | - |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Phosphor Bronze |
| Contact Length - Post: | 0.085" (2.16mm) |
| Contact Length - Mating: | 0.215" (5.46mm) |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | 10.0µin (0.25µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply IPL1-106-01-L-D-RA-K, use the request quote form to request IPL1-106-01-L-D-RA-K pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPL1-106-01-L-D-RA-K.The price and lead time for IPL1-106-01-L-D-RA-K depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IPL1-106-01-L-D-RA-K.We look forward to working with you to establish long-term relations of cooperation
