IPC0075-S
Chip Quik, Inc.

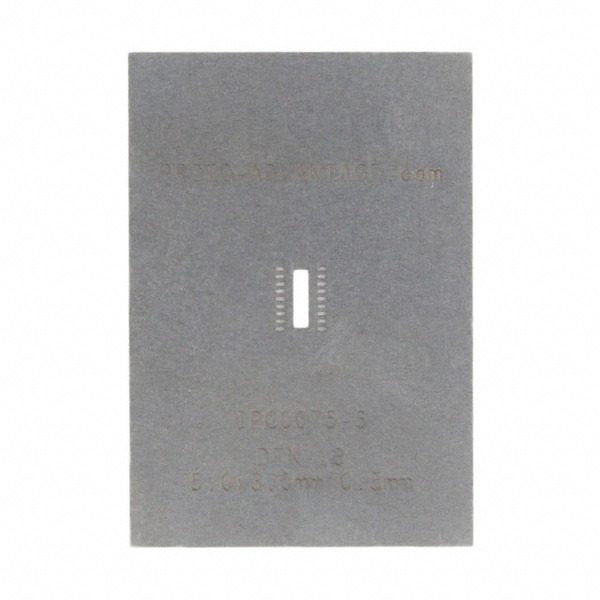

Images are for reference only.
See Product Specifications for product details.
Buy IPC0075-S with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy IPC0075-S with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | IPC0075-S |
|---|---|
| Manufacturer | Chip Quik, Inc. |
| Description | DFN-18 STENCIL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $11.59 | |||||
Specifications
Data sheet
| Type: | DFN |
|---|---|
| Thickness: | 0.0040" (0.102mm) |
| Thermal Center Pad: | 0.059" L x 0.173" W (1.50mm x 4.40mm) |
| Series: | Proto-Advantage |
| Pitch: | 0.020" (0.50mm) |
| Outer Dimension: | 0.900" L x 1.300" W (22.86mm x 33.02mm) |
| Number of Positions: | 18 |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material: | Stainless Steel |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inner Dimension: | 0.197" L x 0.118" W (5.00mm x 3.00mm) |
| Email: | info@cjjhk.com |
Introduce
We can supply IPC0075-S, use the request quote form to request IPC0075-S pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPC0075-S.The price and lead time for IPC0075-S depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IPC0075-S.We look forward to working with you to establish long-term relations of cooperation
