IHLP6767GZERR56M01
Vishay Precision Group

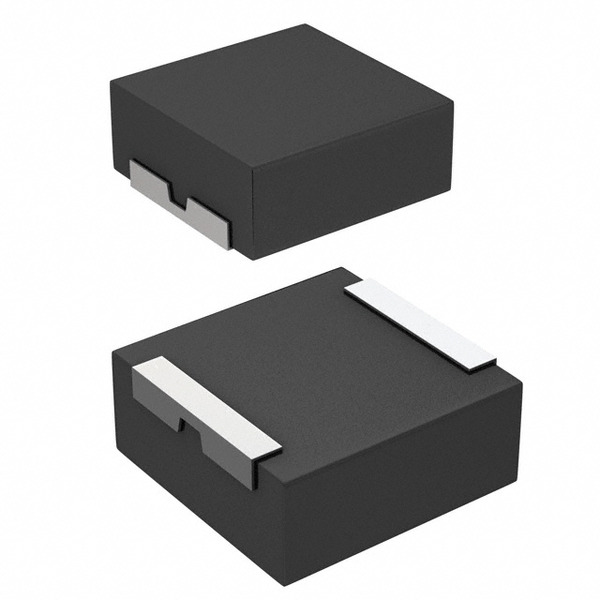

Images are for reference only.
See Product Specifications for product details.
Buy IHLP6767GZERR56M01 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy IHLP6767GZERR56M01 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | IHLP6767GZERR56M01 |
|---|---|
| Manufacturer | Vishay |
| Description | Ind High Current Shielded Wirewound 560nH 20% 100KHz 56A 6767 T/R |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $2.479 | $2.237 | $2.018 | $1.974 | ||
Specifications
Data sheet
| Type: | Molded |
|---|---|
| Tolerance: | ±20% |
| Supplier Device Package: | - |
| Size / Dimension: | 0.675" L x 0.675" W (17.15mm x 17.15mm) |
| Shielding: | Shielded |
| Series: | IHLP-6767GZ-01 |
| Ratings: | - |
| Q @ Freq: | - |
| Packaging: | Cut Tape (CT) |
| Package / Case: | Nonstandard |
| Other Names: | 541-1248-1 |
| Operating Temperature: | -55°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Core: | - |
| Manufacturer Standard Lead Time: | 30 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance Frequency - Test: | 100kHz |
| Inductance: | 560nH |
| Height - Seated (Max): | 0.276" (7.00mm) |
| Frequency - Self Resonant: | - |
| Detailed Description: | 560nH Shielded Molded Inductor 56A 1.05 mOhm Max Nonstandard |
| DC Resistance (DCR): | 1.05 mOhm Max |
| Current Rating: | 56A |
| Current - Saturation: | 88A |
| Email: | info@cjjhk.com |
Introduce
We can supply IHLP6767GZERR56M01, use the request quote form to request IHLP6767GZERR56M01 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IHLP6767GZERR56M01.The price and lead time for IHLP6767GZERR56M01 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IHLP6767GZERR56M01.We look forward to working with you to establish long-term relations of cooperation
