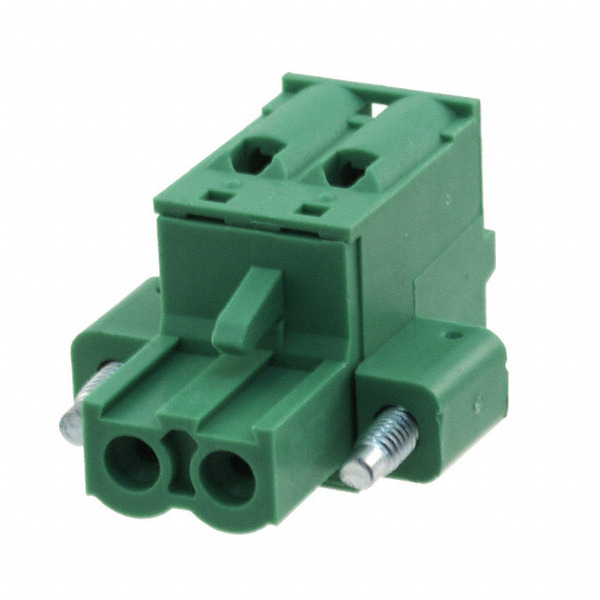

HW0250520000G
Anytek (Amphenol Anytek)
Images are for reference only.
See Product Specifications for product details.
Buy HW0250520000G with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy HW0250520000G with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | HW0250520000G |
|---|---|
| Manufacturer | Anytek (Amphenol Anytek) |
| Description | TERM BLOCK PLUG 2POS STR 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | ||||
|---|---|---|---|---|---|
| $0.402 | |||||
Specifications
Data sheet
| Wire Strip Length: | 8-9mm |
|---|---|
| Wire Gauge or Range - mm²: | 2.5mm² |
| Wire Gauge or Range - AWG: | 12-26 AWG |
| Voltage - UL: | 300V |
| Type: | Plug, Female Sockets |
| Torque - Screw: | - |
| Termination Style: | Screwless - Leg Spring, Push-In Spring |
| Series: | 35-508 |
| Screw Size: | - |
| Positions Per Level: | 2 |
| Plug Wire Entry: | 180° |
| Pitch: | 0.200" (5.08mm) |
| Packaging: | Bulk |
| Other Names: | 20020035-H021B01LF 20020035H021B01LF 609-4561 HW0250520000G-ND HW02505200J0G HW02505200J0G-ND |
| Operating Temperature: | -40°C ~ 115°C |
| Number of Positions: | 2 |
| Number of Levels: | 1 |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Height: | 0.591" (15.00mm) |
| Ingress Protection: | - |
| Housing Material: | Thermoplastic Resin |
| Header Orientation: | - |
| Features: | Mating Flange, Retention Latches (Non-Wire Side) |
| Detailed Description: | 2 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line) |
| Current - UL: | 10A |
| Current - IEC: | - |
| Contact Tail Length: | - |
| Contact Mating Finish: | Tin |
| Contact Material: | Copper Alloy |
| Color: | Green |
| Email: | info@cjjhk.com |
Introduce
We can supply HW0250520000G, use the request quote form to request HW0250520000G pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HW0250520000G.The price and lead time for HW0250520000G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HW0250520000G.We look forward to working with you to establish long-term relations of cooperation
