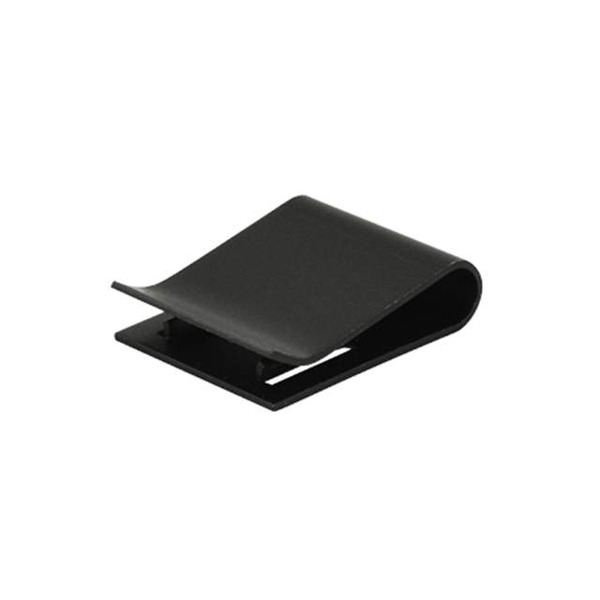

HSS-B20-NP-03
CUI, Inc.
Images are for reference only.
See Product Specifications for product details.
Buy HSS-B20-NP-03 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy HSS-B20-NP-03 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | HSS-B20-NP-03 |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | HEATSINK TO-220 3.6W ALUMINUM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4000 pcs | ||||
|---|---|---|---|---|---|
| $0.276 | |||||
Specifications
Data sheet
| Width: | 0.787" (20.00mm) |
|---|---|
| Type: | Top Mount |
| Thermal Resistance @ Natural: | 20.83°C/W |
| Thermal Resistance @ Forced Air Flow: | 7.45°C/W @ 200 LFM |
| Shape: | Rectangular, Fins |
| Series: | - |
| Power Dissipation @ Temperature Rise: | 3.6W @ 75°C |
| Package Cooled: | TO-220 |
| Material Finish: | Black Anodized |
| Material: | Aluminum |
| Length: | 0.279" (7.10mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin): | 1.000" (25.40mm) |
| Diameter: | - |
| Detailed Description: | Heat Sink TO-220 Aluminum 3.6W @ 75°C Top Mount |
| California Prop 65: | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Attachment Method: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply HSS-B20-NP-03, use the request quote form to request HSS-B20-NP-03 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HSS-B20-NP-03.The price and lead time for HSS-B20-NP-03 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HSS-B20-NP-03.We look forward to working with you to establish long-term relations of cooperation
