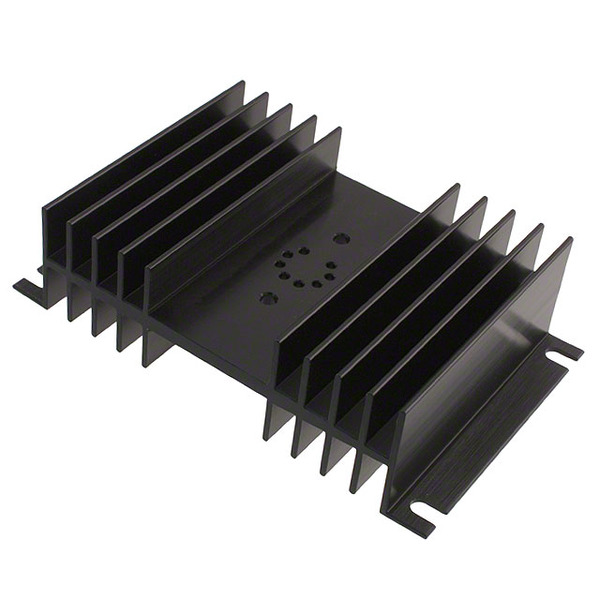

HS03
Apex Microtechnology
Images are for reference only.
See Product Specifications for product details.
Buy HS03 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy HS03 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | HS03 |
|---|---|
| Manufacturer | Apex Microtechnology |
| Description | HEATSINK 8P TO-3 1.7C/W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $61.54 | $57.92 | $54.30 | $50.68 | $48.87 | |
Specifications
Data sheet
| Width: | 4.750" (120.65mm) |
|---|---|
| Type: | Board Level |
| Thermal Resistance @ Natural: | 1.70°C/W |
| Thermal Resistance @ Forced Air Flow: | 1.00°C/W @ 200 LFM |
| Shape: | Rectangular, Fins |
| Series: | Apex Precision Power® |
| Power Dissipation @ Temperature Rise: | 15.0W @ 30°C |
| Package Cooled: | TO-3 |
| Other Names: | 598-1369 598-2046 598-2046-ND |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Finish: | Black Anodized |
| Material: | Aluminum |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Length: | 3.000" (76.20mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin): | 1.250" (31.75mm) |
| Diameter: | - |
| Detailed Description: | Heat Sink TO-3 Aluminum 15.0W @ 30°C Board Level |
| Attachment Method: | Bolt On |
| Email: | info@cjjhk.com |
Introduce
We can supply HS03, use the request quote form to request HS03 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HS03.The price and lead time for HS03 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HS03.We look forward to working with you to establish long-term relations of cooperation
