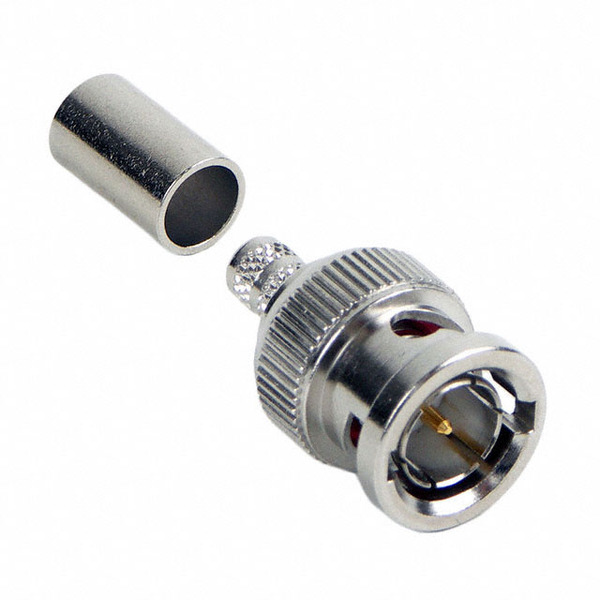

HP75BNC1X
Conxall / Switchcraft
Images are for reference only.
See Product Specifications for product details.
Buy HP75BNC1X with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy HP75BNC1X with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | HP75BNC1X |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN BNC PLUG STR 75 OHM CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $4.45 | $4.272 | $3.916 | $3.738 | $3.56 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $3.115 | $3.026 | $2.581 | $2.403 | ||
Specifications
Data sheet
| Voltage Rating: | 500V |
|---|---|
| Shield Termination: | Crimp |
| Series: | HP75BNC |
| Packaging: | Bulk |
| Other Names: | HP75BNC1 HP75BNC1-ND HP75BNC1X-ND SC2835 |
| Operating Temperature: | -65°C ~ 165°C |
| Number of Ports: | 1 |
| Mounting Type: | Free Hanging (In-Line) |
| Mounting Feature: | - |
| Moisture Sensitivity Level (MSL): | Not Applicable |
| Mating Cycles: | 500 |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insertion Loss: | - |
| Ingress Protection: | - |
| Includes: | 2 pcs - 1 Connector, 1 Ferrule |
| Impedance: | 75 Ohm |
| Housing Color: | Silver |
| Features: | - |
| Fastening Type: | Bayonet Lock |
| Dielectric Material: | - |
| Detailed Description: | BNC Connector Plug, Male Pin 75 Ohm Free Hanging (In-Line) Crimp |
| Contact Termination: | Crimp |
| Connector Type: | Plug, Male Pin |
| Connector Style: | BNC |
| Center Contact Plating: | Gold |
| Center Contact Material: | Copper Alloy |
| Cable Group: | Belden 8241 |
| Body Material: | Copper Alloy |
| Body Finish: | Nickel |
| Email: | info@cjjhk.com |
Introduce
We can supply HP75BNC1X, use the request quote form to request HP75BNC1X pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HP75BNC1X.The price and lead time for HP75BNC1X depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HP75BNC1X.We look forward to working with you to establish long-term relations of cooperation
