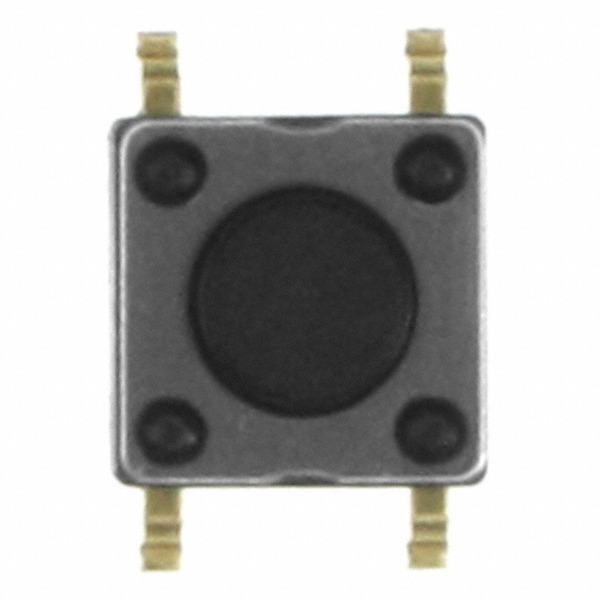

HP0315AFKP4
NKK Switches
Images are for reference only.
See Product Specifications for product details.
Buy HP0315AFKP4 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy HP0315AFKP4 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | HP0315AFKP4 |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH TACTILE SPST-NO 0.4VA 28V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.40 | $1.35 | $1.242 | $1.08 | $1.026 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.999 | $0.972 | $0.756 | $0.702 | ||
Specifications
Data sheet
| Termination Style: | Gull Wing |
|---|---|
| Switch Travel: | 0.20mm |
| Switch Function: | Off-Mom |
| Series: | HP03 |
| Packaging: | Bulk |
| Outline: | 6.20mm x 6.20mm |
| Other Names: | 360-3475 HP0315AFKP4-ND |
| Operating Temperature: | -20°C ~ 70°C |
| Operating Force: | 160gf |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | 500,000 Cycles |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Illumination Voltage (Nominal): | - |
| Illumination Type, Color: | - |
| Illumination: | Non-Illuminated |
| Features: | Sealed - Flux Protection |
| Detailed Description: | Tactile Switch SPST-NO Top Actuated Surface Mount |
| Contact Rating @ Voltage: | 0.4VA @ 28VAC/DC |
| Circuit: | SPST-NO |
| Actuator Type: | Standard |
| Actuator Orientation: | Top Actuated |
| Actuator Material: | Polyamide (PA), Nylon, Glass Filled |
| Actuator Length, Right Angle: | - |
| Actuator Height off PCB, Vertical: | 4.40mm |
| Email: | info@cjjhk.com |
Introduce
We can supply HP0315AFKP4, use the request quote form to request HP0315AFKP4 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HP0315AFKP4.The price and lead time for HP0315AFKP4 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HP0315AFKP4.We look forward to working with you to establish long-term relations of cooperation
