HMC1501-TR
Honeywell Sensing and Productivity Solutions

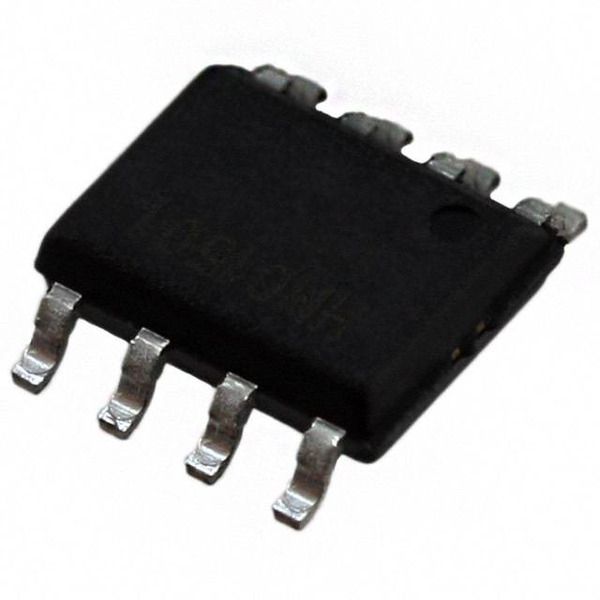

Images are for reference only.
See Product Specifications for product details.
Buy HMC1501-TR with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy HMC1501-TR with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | HMC1501-TR |
|---|---|
| Manufacturer | Honeywell |
| Description | Sensor Displacement Lin/ Angular |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.624 | $1.466 | $1.323 | $1.294 | ||
Specifications
Data sheet
| Voltage - Supply: | 1 V ~ 25 V |
|---|---|
| Termination Style: | SMD (SMT) Tab |
| Technology: | Magnetoresistive |
| Supplier Device Package: | 8-SOIC |
| Series: | - |
| Rotation Angle - Electrical, Mechanical: | 90° (±45°) |
| Resistance Tolerance: | - |
| Resistance: | 6.5 kOhms |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
| Output Signal: | - |
| Output: | Wheatstone Bridge |
| Other Names: | 342-1008-2 HMC1501 HMC1501TR |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Linearity: | - |
| Linear Range: | 0 ~ 8.00mm (0 ~ 0.31") |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| For Measuring: | Angle, Linear, Rotary |
| Detailed Description: | Magnetoresistive Sensor Angle, Linear, Rotary External Magnet, Not Included SMD (SMT) Tab |
| Actuator Type: | External Magnet, Not Included |
| Email: | info@cjjhk.com |
Introduce
We can supply HMC1501-TR, use the request quote form to request HMC1501-TR pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HMC1501-TR.The price and lead time for HMC1501-TR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HMC1501-TR.We look forward to working with you to establish long-term relations of cooperation
