HMB1130K01M
Agastat Relays / TE Connectivity

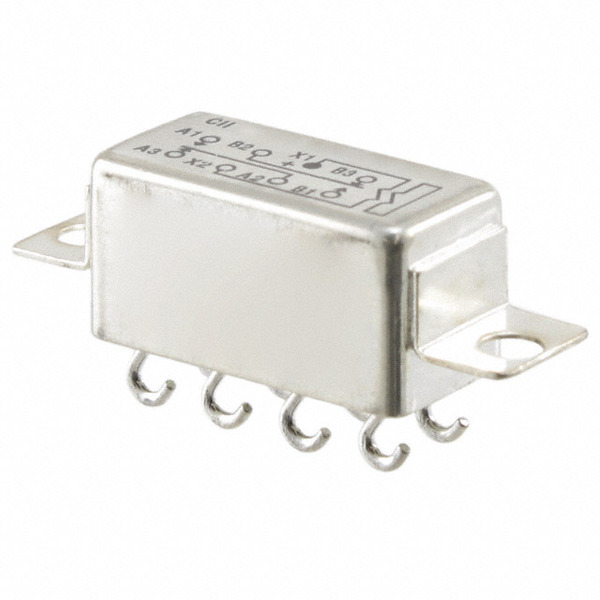

Images are for reference only.
See Product Specifications for product details.
Buy HMB1130K01M with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy HMB1130K01M with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | HMB1130K01M |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE DPDT 2A 28V |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $151.90 | $142.96 | $134.025 | $125.09 | ||
Specifications
Data sheet
| Turn On Voltage (Max): | 15 VDC |
|---|---|
| Turn Off Voltage (Min): | 1.5 VDC |
| Termination Style: | Solder Hook |
| Switching Voltage: | 28VDC - Nom |
| Series: | Military, MIL-R-39016/22, HMB, CII |
| Release Time: | 5ms |
| Relay Type: | General Purpose |
| Packaging: | Bulk |
| Other Names: | 1122-1136 1122-1136-MIL 1122-1136-ND 1617038-6 A101706 A101706-ND A132189 HMB1130K01M-ND M39016/22-004M |
| Operating Temperature: | -65°C ~ 125°C |
| Operate Time: | 5ms |
| Mounting Type: | Chassis Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 15 Weeks |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Features: | Sealed - Hermetically |
| Detailed Description: | General Purpose Relay DPDT (2 Form C) Chassis Mount |
| Contact Rating (Current): | 2A |
| Contact Material: | - |
| Contact Form: | DPDT (2 Form C) |
| Coil Voltage: | 26.5VDC |
| Coil Type: | Non Latching |
| Coil Resistance: | 700 Ohms |
| Coil Power: | 1 W |
| Coil Current: | 37.9mA |
| Email: | info@cjjhk.com |
Introduce
We can supply HMB1130K01M, use the request quote form to request HMB1130K01M pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HMB1130K01M.The price and lead time for HMB1130K01M depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HMB1130K01M.We look forward to working with you to establish long-term relations of cooperation
