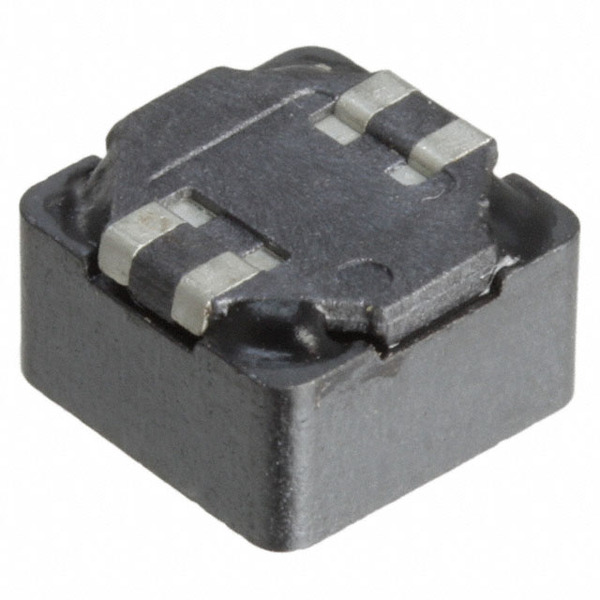

HM78D-755470MLFTR
TT Electronics
Images are for reference only.
See Product Specifications for product details.
Buy HM78D-755470MLFTR with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy HM78D-755470MLFTR with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | HM78D-755470MLFTR |
|---|---|
| Manufacturer | TT Electronics |
| Description | INDUCT ARRAY 2 COIL 47UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $1.63 | $1.51 | $1.092 | $0.836 | ||
Specifications
Data sheet
| Tolerance: | ±20% |
|---|---|
| Size / Dimension: | 0.303" L x 0.303" W (7.70mm x 7.70mm) |
| Shielding: | Shielded |
| Series: | HM78D |
| Ratings: | - |
| Packaging: | Cut Tape (CT) |
| Package / Case: | Nonstandard |
| Other Names: | 987-1442-1 |
| Operating Temperature: | -40°C ~ 125°C |
| Number of Coils: | 2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance - Connected In Series: | 198.6µH |
| Inductance - Connected In Parallel: | 47µH |
| Height: | 0.189" (4.80mm) |
| Detailed Description: | Shielded 2 Coil Inductor Array 198.6µH Inductance - Connected in Series 47µH Inductance - Connected in Parallel 216 mOhm DC Resistance (DCR) - Parallel 1.15A Nonstandard |
| DC Resistance (DCR) - Series: | 865 mOhm |
| DC Resistance (DCR) - Parallel: | 216 mOhm |
| Current Saturation - Series: | 710mA |
| Current Saturation - Parallel: | 1.41A |
| Current Rating - Series: | 573mA |
| Current Rating - Parallel: | 1.15A |
| Email: | info@cjjhk.com |
Introduce
We can supply HM78D-755470MLFTR, use the request quote form to request HM78D-755470MLFTR pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HM78D-755470MLFTR.The price and lead time for HM78D-755470MLFTR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HM78D-755470MLFTR.We look forward to working with you to establish long-term relations of cooperation
