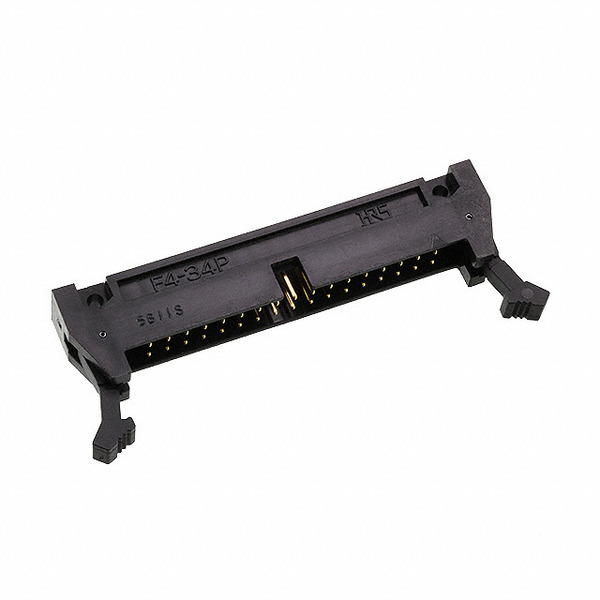

HIF4-34P-3.18DS
Hirose
Images are for reference only.
See Product Specifications for product details.
Buy HIF4-34P-3.18DS with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy HIF4-34P-3.18DS with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | HIF4-34P-3.18DS |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HDR 34POS 3.18MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $12.08 | $10.98 | $9.333 | |||
Specifications
Data sheet
| Voltage Rating: | 300V |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | HIF4 |
| Row Spacing - Mating: | 0.125" (3.18mm) |
| Pitch - Mating: | 0.125" (3.18mm) |
| Packaging: | Tray |
| Overall Contact Length: | - |
| Other Names: | 563-0003-2-00 H123920 HIF4-34P-3.18DS-ND |
| Operating Temperature: | -55°C ~ 85°C |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 34 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polybutylene Terephthalate (PBT) |
| Insulation Height: | 0.394" (10.00mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | Keying Slot, Mounting Flange |
| Fastening Type: | Latch Lock/Eject Hooks |
| Detailed Description: | Connector Header Through Hole, Right Angle 34 position 0.125" (3.18mm) |
| Current Rating: | 3A |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Phosphor Bronze |
| Contact Length - Post: | 0.138" (3.50mm) |
| Contact Length - Mating: | 0.201" (5.10mm) |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | 8.00µin (0.203µm) |
| Contact Finish - Post: | - |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply HIF4-34P-3.18DS, use the request quote form to request HIF4-34P-3.18DS pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HIF4-34P-3.18DS.The price and lead time for HIF4-34P-3.18DS depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HIF4-34P-3.18DS.We look forward to working with you to establish long-term relations of cooperation
