HDSP-N101
Broadcom

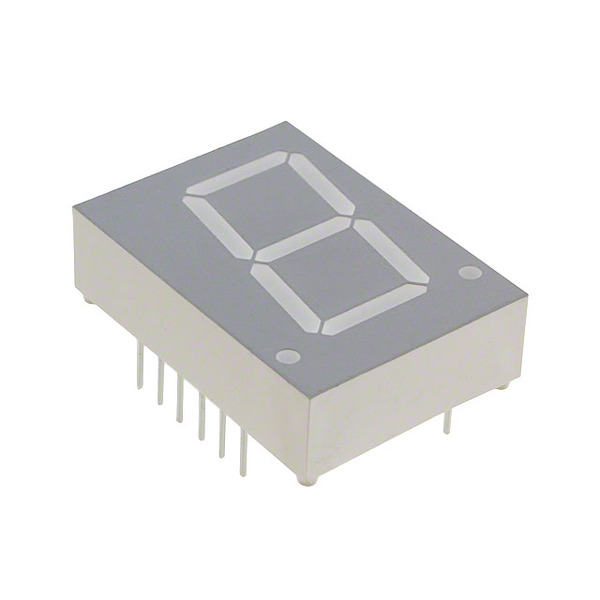

Images are for reference only.
See Product Specifications for product details.
Buy HDSP-N101 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy HDSP-N101 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | HDSP-N101 |
|---|---|
| Manufacturer | Broadcom |
| Description | 7-Segment Display, Red, Low Current, 20.0 mm Common Anode, Right Hand Decimal |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $4.797 | $4.33 | $3.906 | $3.821 | ||
Specifications
Data sheet
| Wavelength - Peak: | 645nm |
|---|---|
| Voltage - Forward (Vf) (Typ): | 1.7V |
| Size / Dimension: | 1.090" H x 0.786" W x 0.330" D (27.69mm x 19.96mm x 8.38mm) |
| Series: | - |
| Power Dissipation (Max): | 37mW |
| Packaging: | Bulk |
| Package / Case: | 18-DIP (0.600", 15.24mm), 12 Leads |
| Other Names: | 516-2536 HDSP-N101-ND HDSPN101 |
| Number of Characters: | 1 |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Millicandela Rating: | 3.5mcd |
| Manufacturer Standard Lead Time: | 9 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Display Type: | 7-Segment |
| Digit/Alpha Size: | 0.80" (20.32mm) |
| Detailed Description: | Character LED Display Module Red 7-Segment 1 Character Common Anode 1.7V 5mA 1.090" H x 0.786" W x 0.330" D (27.69mm x 19.96mm x 8.38mm) 18-DIP (0.600", 15.24mm), 12 Leads |
| Current - Test: | 5mA |
| Common Pin: | Common Anode |
| Color: | Red |
| Email: | info@cjjhk.com |
Introduce
We can supply HDSP-N101, use the request quote form to request HDSP-N101 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HDSP-N101.The price and lead time for HDSP-N101 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HDSP-N101.We look forward to working with you to establish long-term relations of cooperation
