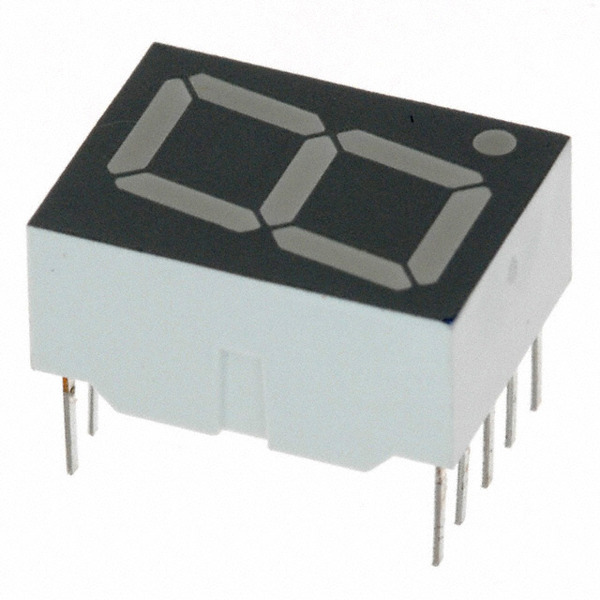

HDSP-H103
Broadcom
Images are for reference only.
See Product Specifications for product details.
Buy HDSP-H103 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy HDSP-H103 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | HDSP-H103 |
|---|---|
| Manufacturer | Broadcom |
| Description | 7-Segment Display, Red, Low Current, 14.2 mm Common Cathode, Right Hand Decimal |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $2.531 | $2.285 | $2.061 | $2.016 | ||
Specifications
Data sheet
| Wavelength - Peak: | 645nm |
|---|---|
| Voltage - Forward (Vf) (Typ): | 1.7V |
| Size / Dimension: | 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) |
| Series: | - |
| Power Dissipation (Max): | 37mW |
| Packaging: | Tube |
| Package / Case: | 10-DIP (0.600", 15.24mm) |
| Other Names: | 516-1229-5 HDSPH103 |
| Number of Characters: | 1 |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Millicandela Rating: | 4.2mcd |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Display Type: | 7-Segment |
| Digit/Alpha Size: | 0.56" (14.22mm) |
| Detailed Description: | Character LED Display Module Red 7-Segment 1 Character Common Cathode 1.7V 5mA 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) 10-DIP (0.600", 15.24mm) |
| Current - Test: | 5mA |
| Common Pin: | Common Cathode |
| Color: | Red |
| Email: | info@cjjhk.com |
Introduce
We can supply HDSP-H103, use the request quote form to request HDSP-H103 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HDSP-H103.The price and lead time for HDSP-H103 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HDSP-H103.We look forward to working with you to establish long-term relations of cooperation
