HDSP-7513
Avago Technologies (Broadcom Limited)

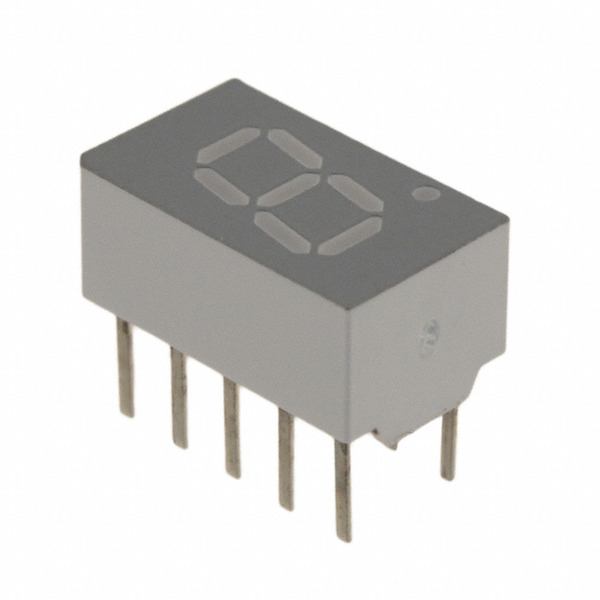

Images are for reference only.
See Product Specifications for product details.
Buy HDSP-7513 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy HDSP-7513 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | HDSP-7513 |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | LED 7-SEG 7.6MM CC HE RED RHD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 200 pcs | |
|---|---|---|---|---|---|
| $2.90 | $2.571 | $1.907 | $1.658 | ||
| 400 pcs | 600 pcs | 1000 pcs | 2600 pcs | ||
| $1.493 | $1.327 | $1.14 | $1.078 | ||
Specifications
Data sheet
| Wavelength - Peak: | 635nm |
|---|---|
| Voltage - Forward (Vf) (Typ): | 1.7V |
| Size / Dimension: | 0.500" H x 0.300" W x 0.390" D (12.70mm x 7.62mm x 9.91mm) |
| Series: | - |
| Power Dissipation (Max): | 52mW |
| Packaging: | Bulk |
| Package / Case: | 10-DIP (0.200", 5.08mm) |
| Other Names: | 516-1223 516-1223-5 516-1223-5-ND HDSP7513 |
| Number of Characters: | 1 |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Millicandela Rating: | 1.05mcd |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Display Type: | 7-Segment |
| Digit/Alpha Size: | 0.30" (7.62mm) |
| Detailed Description: | Character LED Display Module Red 7-Segment 1 Character Common Cathode 1.7V 5mA 0.500" H x 0.300" W x 0.390" D (12.70mm x 7.62mm x 9.91mm) 10-DIP (0.200", 5.08mm) |
| Current - Test: | 5mA |
| Common Pin: | Common Cathode |
| Color: | Red |
| Email: | info@cjjhk.com |
Introduce
We can supply HDSP-7513, use the request quote form to request HDSP-7513 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HDSP-7513.The price and lead time for HDSP-7513 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HDSP-7513.We look forward to working with you to establish long-term relations of cooperation
