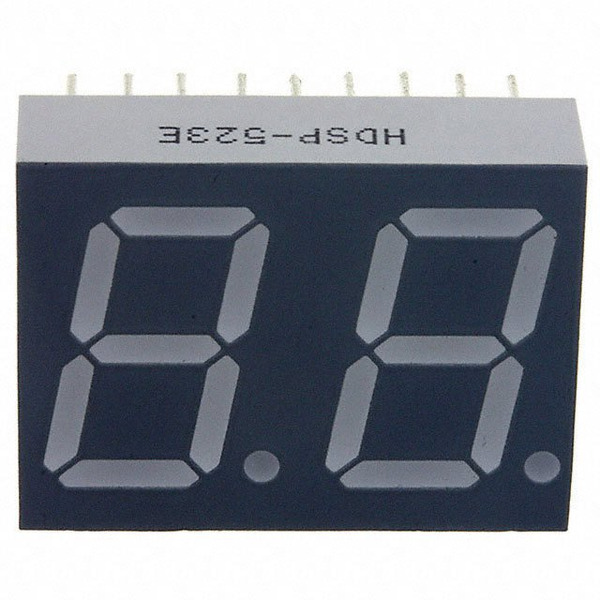

HDSP-523E
Broadcom
Images are for reference only.
See Product Specifications for product details.
Buy HDSP-523E with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy HDSP-523E with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | HDSP-523E |
|---|---|
| Manufacturer | Broadcom |
| Description | Displays Segmented Panel 2DIGIT 16LED Hi-Eff. Red CC 18-Pin DIP Tube |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.245 | $1.124 | $1.014 | $0.991 | ||
Specifications
Data sheet
| Wavelength - Peak: | 640nm |
|---|---|
| Voltage - Forward (Vf) (Typ): | 2.05V |
| Size / Dimension: | 0.732" H x 0.984" W x 0.315" D (18.60mm x 25.00mm x 8.00mm) |
| Series: | - |
| Power Dissipation (Max): | 62.5mW |
| Packaging: | Tube |
| Package / Case: | 18-DIP (0.600", 15.24mm) |
| Other Names: | 516-1207-5 HDSP523E |
| Number of Characters: | 2 |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Millicandela Rating: | 4mcd |
| Manufacturer Standard Lead Time: | 9 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Display Type: | 7-Segment |
| Digit/Alpha Size: | 0.56" (14.22mm) |
| Detailed Description: | Character LED Display Module Red 7-Segment 2 Character Common Cathode 2.05V 20mA 0.732" H x 0.984" W x 0.315" D (18.60mm x 25.00mm x 8.00mm) 18-DIP (0.600", 15.24mm) |
| Current - Test: | 20mA |
| Common Pin: | Common Cathode |
| Color: | Red |
| Email: | info@cjjhk.com |
Introduce
We can supply HDSP-523E, use the request quote form to request HDSP-523E pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HDSP-523E.The price and lead time for HDSP-523E depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HDSP-523E.We look forward to working with you to establish long-term relations of cooperation
