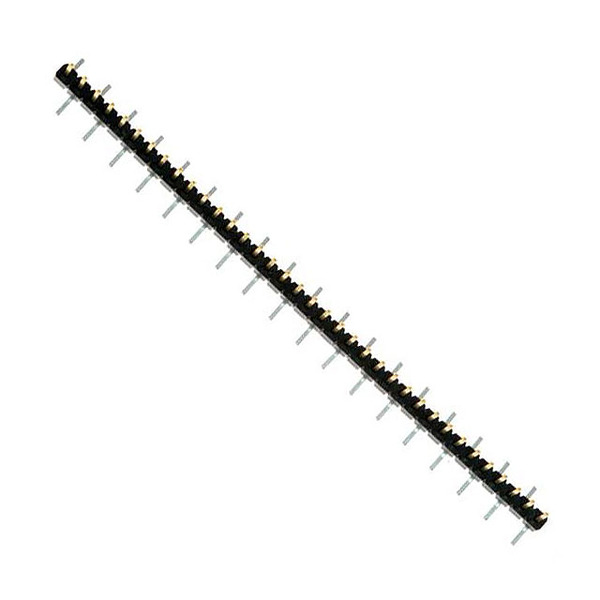

HDR100IMP40M-G-V-SM
Chip Quik, Inc.
Images are for reference only.
See Product Specifications for product details.
Buy HDR100IMP40M-G-V-SM with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy HDR100IMP40M-G-V-SM with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | HDR100IMP40M-G-V-SM |
|---|---|
| Manufacturer | Chip Quik, Inc. |
| Description | 0.1" 40 PIN VERTICAL MALE HEADER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $1.09 | |||||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Board |
| Shrouding: | Unshrouded |
| Series: | Proto-Advantage |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Bulk |
| Overall Contact Length: | - |
| Operating Temperature: | - |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 40 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | - |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 4 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | - |
| Insulation Height: | 0.098" (2.50mm) |
| Insulation Color: | - |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Push-Pull |
| Detailed Description: | Connector Header Surface Mount 40 position 0.100" (2.54mm) |
| Current Rating: | - |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | - |
| Contact Length - Post: | - |
| Contact Length - Mating: | 0.236" (6.00mm) |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | - |
| Contact Finish - Post: | Gold |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header, Breakaway |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply HDR100IMP40M-G-V-SM, use the request quote form to request HDR100IMP40M-G-V-SM pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HDR100IMP40M-G-V-SM.The price and lead time for HDR100IMP40M-G-V-SM depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HDR100IMP40M-G-V-SM.We look forward to working with you to establish long-term relations of cooperation
