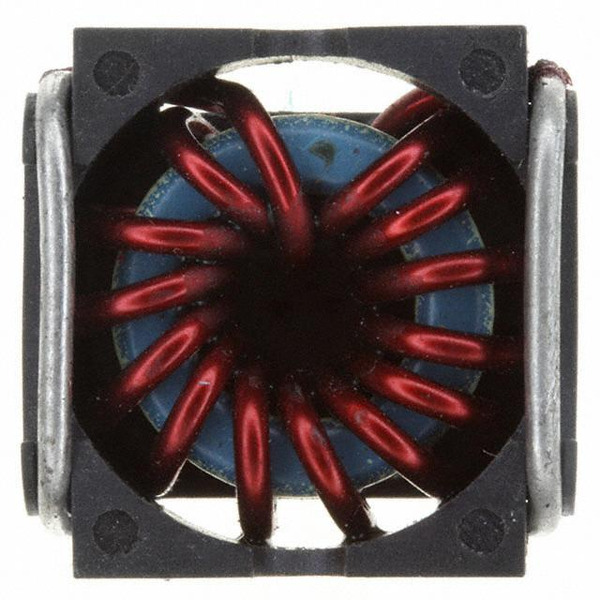

HCTR-501
API Delevan
Images are for reference only.
See Product Specifications for product details.
Buy HCTR-501 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy HCTR-501 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | HCTR-501 |
|---|---|
| Manufacturer | API Delevan |
| Description | FIXED IND 6.5UH 12A 6.6 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $2.579 | |||||
Specifications
Data sheet
| Type: | Toroidal |
|---|---|
| Tolerance: | ±25% |
| Supplier Device Package: | - |
| Size / Dimension: | 0.740" L x 0.740" W (18.80mm x 18.80mm) |
| Shielding: | Shielded |
| Series: | HCTR |
| Ratings: | - |
| Q @ Freq: | 25 @ 100kHz |
| Packaging: | Bulk |
| Package / Case: | Nonstandard |
| Other Names: | DN4799 HCTR-501 BULK 50 |
| Operating Temperature: | -30°C ~ 130°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Core: | Iron Powder |
| Manufacturer Standard Lead Time: | 17 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance Frequency - Test: | 100kHz |
| Inductance: | 6.5µH |
| Height - Seated (Max): | 0.400" (10.16mm) |
| Frequency - Self Resonant: | 55MHz |
| Detailed Description: | 6.5µH Shielded Toroidal Inductor 12A 6.6 mOhm Max Nonstandard |
| DC Resistance (DCR): | 6.6 mOhm Max |
| Current Rating: | 12A |
| Current - Saturation: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply HCTR-501, use the request quote form to request HCTR-501 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HCTR-501.The price and lead time for HCTR-501 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HCTR-501.We look forward to working with you to establish long-term relations of cooperation
