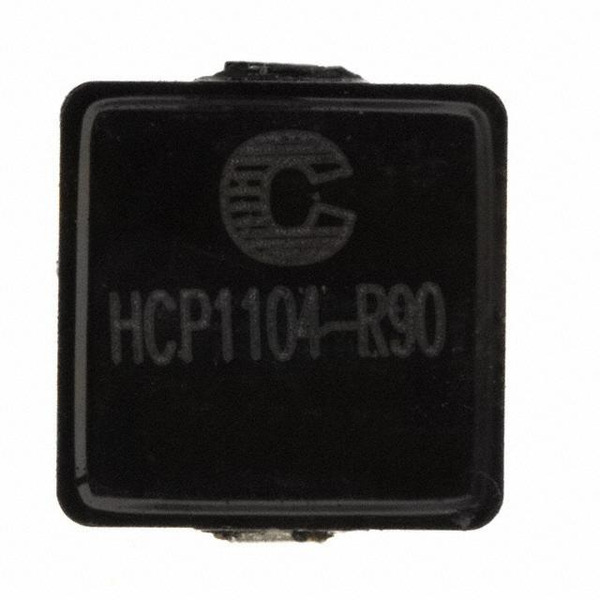

HCP1104-R90-R
Bussmann (Eaton)
Images are for reference only.
See Product Specifications for product details.
Buy HCP1104-R90-R with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy HCP1104-R90-R with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | HCP1104-R90-R |
|---|---|
| Manufacturer | Eaton |
| Description | Fixed Ind 900NH 22A 2.5 Mohm SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Type: | Wirewound |
|---|---|
| Tolerance: | ±20% |
| Supplier Device Package: | - |
| Size / Dimension: | 0.453" L x 0.394" W (11.50mm x 10.00mm) |
| Shielding: | Unshielded |
| Series: | HCP1104 |
| Ratings: | - |
| Q @ Freq: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | Nonstandard |
| Other Names: | 513-1375-2 |
| Operating Temperature: | -55°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Core: | Iron Powder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance Frequency - Test: | 100kHz |
| Inductance: | 900nH |
| Height - Seated (Max): | 0.157" (4.00mm) |
| Frequency - Self Resonant: | - |
| Detailed Description: | 900nH Unshielded Wirewound Inductor 22A 2.5 mOhm Max Nonstandard |
| DC Resistance (DCR): | 2.5 mOhm Max |
| Current Rating: | 22A |
| Current - Saturation: | 25A |
| Email: | info@cjjhk.com |
Introduce
We can supply HCP1104-R90-R, use the request quote form to request HCP1104-R90-R pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HCP1104-R90-R.The price and lead time for HCP1104-R90-R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HCP1104-R90-R.We look forward to working with you to establish long-term relations of cooperation
