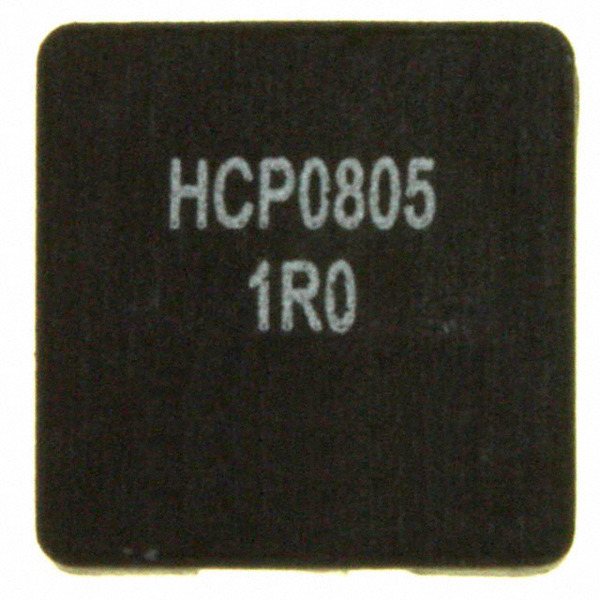

HCP0805-1R0-R
Bussmann (Eaton)
Images are for reference only.
See Product Specifications for product details.
Buy HCP0805-1R0-R with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy HCP0805-1R0-R with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | HCP0805-1R0-R |
|---|---|
| Manufacturer | Eaton |
| Description | Ind High Current Power Shielded Wirewound 1uH 20% 100KHz Powdered Iron 14.5A T/R |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.892 | $1.708 | $1.541 | $1.507 | ||
Specifications
Data sheet
| Type: | Wirewound |
|---|---|
| Tolerance: | ±20% |
| Supplier Device Package: | - |
| Size / Dimension: | 0.303" L x 0.291" W (7.70mm x 7.40mm) |
| Shielding: | Shielded |
| Series: | HCP0805 |
| Ratings: | - |
| Q @ Freq: | - |
| Packaging: | Cut Tape (CT) |
| Package / Case: | Nonstandard |
| Other Names: | 513-1646-1 |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Core: | Iron Powder |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance Frequency - Test: | 100kHz |
| Inductance: | 1µH |
| Height - Seated (Max): | 0.197" (5.00mm) |
| Frequency - Self Resonant: | - |
| Detailed Description: | 1µH Shielded Wirewound Inductor 14.5A 5.8 mOhm Nonstandard |
| DC Resistance (DCR): | 5.8 mOhm |
| Current Rating: | 14.5A |
| Current - Saturation: | 22A |
| Email: | info@cjjhk.com |
Introduce
We can supply HCP0805-1R0-R, use the request quote form to request HCP0805-1R0-R pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HCP0805-1R0-R.The price and lead time for HCP0805-1R0-R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HCP0805-1R0-R.We look forward to working with you to establish long-term relations of cooperation
