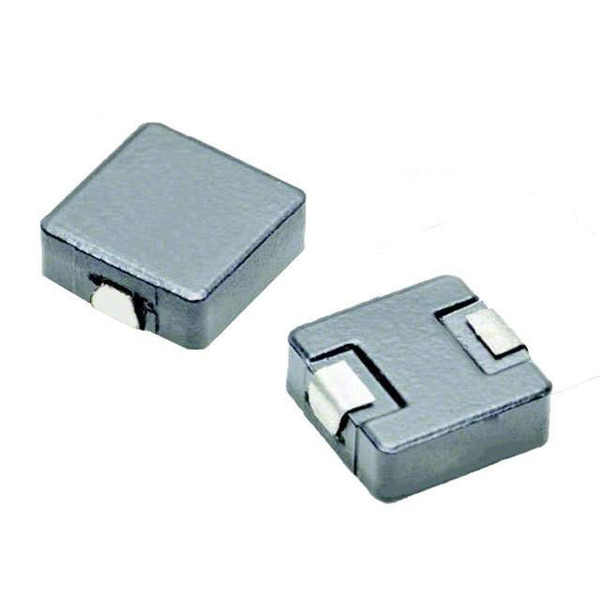

HCMA1305-R56-R
Bussmann (Eaton)
Images are for reference only.
See Product Specifications for product details.
Buy HCMA1305-R56-R with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy HCMA1305-R56-R with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | HCMA1305-R56-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 560NH 36A 1.33 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $2.07 | $1.908 | $1.336 | |||
Specifications
Data sheet
| Type: | Wirewound |
|---|---|
| Tolerance: | ±20% |
| Supplier Device Package: | - |
| Size / Dimension: | 0.524" L x 0.480" W (13.30mm x 12.20mm) |
| Shielding: | Shielded |
| Series: | HCMA1305 |
| Ratings: | AEC-Q200 |
| Q @ Freq: | - |
| Packaging: | Cut Tape (CT) |
| Package / Case: | Nonstandard |
| Other Names: | 283-4563-1 |
| Operating Temperature: | -55°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Core: | Iron Powder |
| Manufacturer Standard Lead Time: | 21 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance Frequency - Test: | 100kHz |
| Inductance: | 560nH |
| Height - Seated (Max): | 0.197" (5.00mm) |
| Frequency - Self Resonant: | - |
| Detailed Description: | 560nH Shielded Wirewound Inductor 36A 1.33 mOhm Max Nonstandard |
| DC Resistance (DCR): | 1.33 mOhm Max |
| Current Rating: | 36A |
| Current - Saturation: | 55A |
| Email: | info@cjjhk.com |
Introduce
We can supply HCMA1305-R56-R, use the request quote form to request HCMA1305-R56-R pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HCMA1305-R56-R.The price and lead time for HCMA1305-R56-R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HCMA1305-R56-R.We look forward to working with you to establish long-term relations of cooperation
