HCMA0703-R22-R
Bussmann (Eaton)

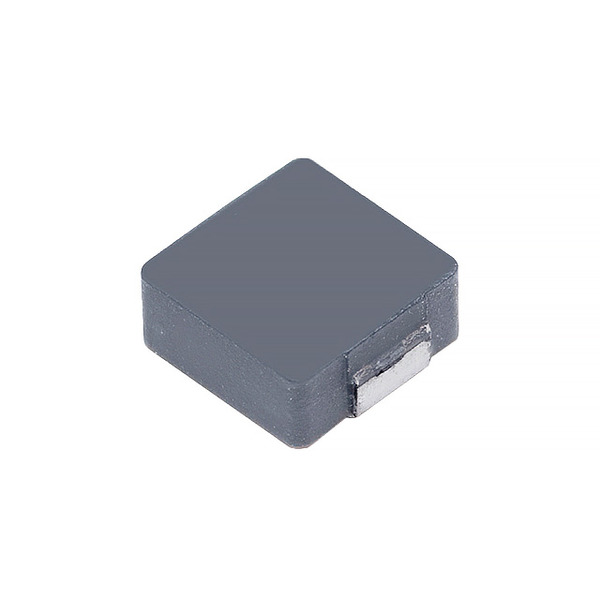

Images are for reference only.
See Product Specifications for product details.
Buy HCMA0703-R22-R with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy HCMA0703-R22-R with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | HCMA0703-R22-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 220NH 23A 2.8 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1500 pcs | 3000 pcs | 7500 pcs | 10500 pcs | |
|---|---|---|---|---|---|
| $0.426 | $0.412 | $0.399 | $0.386 | ||
Specifications
Data sheet
| Type: | Wirewound |
|---|---|
| Tolerance: | ±20% |
| Supplier Device Package: | - |
| Size / Dimension: | 0.280" L x 0.268" W (7.10mm x 6.80mm) |
| Shielding: | Shielded |
| Series: | HCMA0703 |
| Ratings: | AEC-Q200 |
| Q @ Freq: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | Nonstandard |
| Other Names: | 283-4541-2 |
| Operating Temperature: | -55°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Core: | Iron Powder |
| Manufacturer Standard Lead Time: | 13 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance Frequency - Test: | 100kHz |
| Inductance: | 220nH |
| Height - Seated (Max): | 0.118" (3.00mm) |
| Frequency - Self Resonant: | - |
| Detailed Description: | 220nH Shielded Wirewound Inductor 23A 2.8 mOhm Max Nonstandard |
| DC Resistance (DCR): | 2.8 mOhm Max |
| Current Rating: | 23A |
| Current - Saturation: | 40A |
| Email: | info@cjjhk.com |
Introduce
We can supply HCMA0703-R22-R, use the request quote form to request HCMA0703-R22-R pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HCMA0703-R22-R.The price and lead time for HCMA0703-R22-R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HCMA0703-R22-R.We look forward to working with you to establish long-term relations of cooperation
