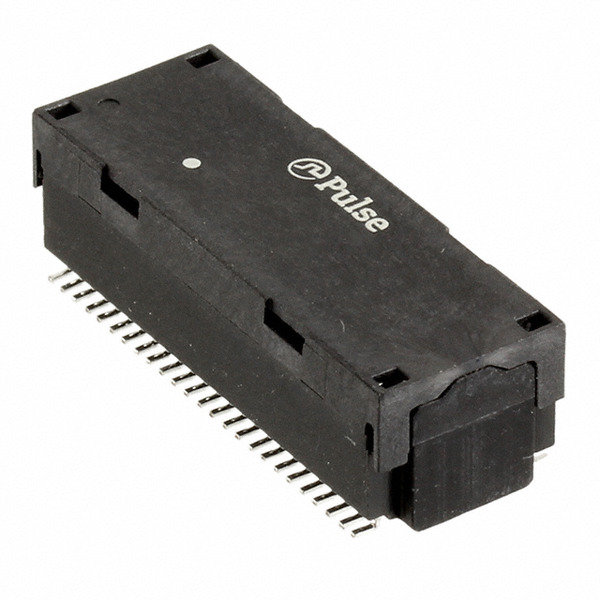

H5020FNL
Pulse Electronics Corporation
Images are for reference only.
See Product Specifications for product details.
Buy H5020FNL with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy H5020FNL with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | H5020FNL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | PULSE XFMR 1CT:1 TX 1CT:1 RX |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 15 pcs | 30 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $15.84 | $11.70 | $10.80 | $10.44 | ||
| 105 pcs | 255 pcs | 510 pcs | 1005 pcs | ||
| $10.152 | $10.008 | $9.90 | $9.72 | ||
Specifications
Data sheet
| Weight: | - |
|---|---|
| Turns Ratio - Primary:Secondary: | 1CT:1 Transmitter, 1CT:1 Receiver |
| Transformer Type: | LAN 10/100/1000 Base-T |
| Size / Dimension: | 1.100" L x 0.395" W (27.94mm x 10.03mm) |
| Series: | - |
| Other Names: | 553-2233 |
| Operating Temperature: | 0°C ~ 70°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 13 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance: | 350µH |
| Height - Seated (Max): | 0.340" (8.64mm) |
| Energy Time (E.T.): | - |
| Email: | info@cjjhk.com |
Introduce
We can supply H5020FNL, use the request quote form to request H5020FNL pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number H5020FNL.The price and lead time for H5020FNL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# H5020FNL.We look forward to working with you to establish long-term relations of cooperation
