H2475-01
Harwin

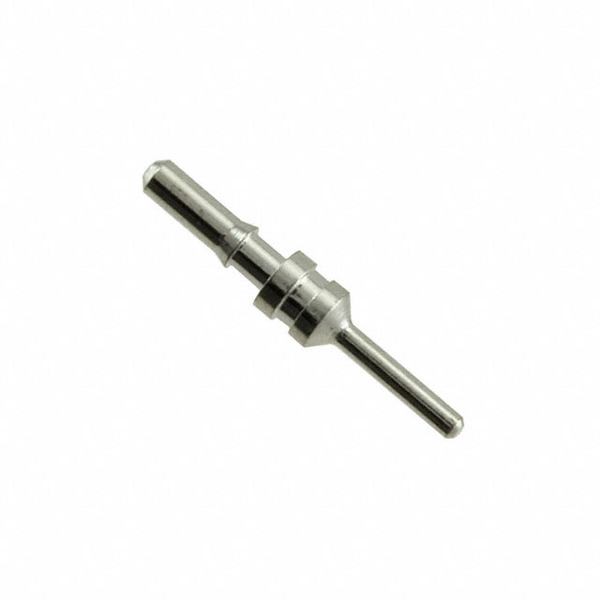

Images are for reference only.
See Product Specifications for product details.
Buy H2475-01 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy H2475-01 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | H2475-01 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN PC PIN CIRC 0.020DIA TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.37 | $0.354 | $0.303 | $0.258 | $0.248 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.222 | $0.212 | $0.177 | $0.162 | ||
Specifications
Data sheet
| Termination: | Swage, Barbed |
|---|---|
| Terminal Type: | PC Pin |
| Terminal Style: | Double End |
| Series: | - |
| Pin Size - Below Flange: | 0.030" (0.76mm) Dia |
| Pin Size - Above Flange: | 0.020" (0.51mm) Dia |
| Packaging: | Bulk |
| Other Names: | 952-2828 H2475-01-ND |
| Mounting Type: | Through Hole |
| Mounting Hole Diameter: | 0.030" ~ 0.033" (0.76mm ~ 0.84mm) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Insulation: | - |
| Manufacturer Standard Lead Time: | 5 Weeks |
| Length - Overall: | 0.287" (7.29mm) |
| Length - Below Flange: | 0.118" (3.00mm) |
| Length - Above Flange: | - |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Color: | - |
| Insulation: | Non-Insulated |
| Flange Diameter: | 0.050" (1.27mm) |
| Detailed Description: | PC Pin Terminal Connector Through Hole Tin 0.020" (0.51mm) Dia |
| Contact Material: | Brass |
| Contact Finish Thickness: | - |
| Contact Finish: | Tin |
| Board Thickness: | 0.063" (1.60mm) |
| Email: | info@cjjhk.com |
Introduce
We can supply H2475-01, use the request quote form to request H2475-01 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number H2475-01.The price and lead time for H2475-01 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# H2475-01.We look forward to working with you to establish long-term relations of cooperation
