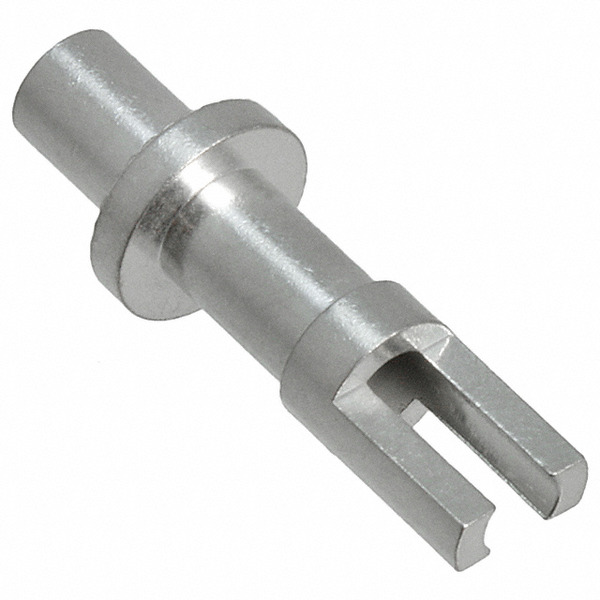

H2039-01
Harwin
Images are for reference only.
See Product Specifications for product details.
Buy H2039-01 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy H2039-01 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | H2039-01 |
|---|---|
| Manufacturer | Harwin |
| Description | TERM TURRET HOLLOW L=12.7MM TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.81 | $0.714 | $0.672 | $0.644 | $0.616 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.56 | $0.504 | $0.448 | $0.406 | ||
Specifications
Data sheet
| Termination: | Swage |
|---|---|
| Terminal Type: | Single End, Fork, Hollow |
| Staking Side OD: | 0.122" ~ 0.125" (3.10mm ~ 3.18mm) |
| Staking Side ID: | 0.086" ~ 0.089" (2.18mm ~ 2.26mm) |
| Series: | - |
| Other Names: | 952-2291 H203901 |
| Number of Turrets: | Single |
| Mounting Type: | Through Hole |
| Mounting Hole Diameter: | 0.126" ~ 0.129" (3.19mm ~ 3.28mm) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Insulation: | - |
| Manufacturer Standard Lead Time: | 5 Weeks |
| Length - Overall: | 0.656" (16.66mm) |
| Length - Below Flange: | 0.156" ~ 0.161" (3.96mm ~ 4.09mm) |
| Length - Above Board: | 0.500" (12.70mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Color: | - |
| Insulation: | Non-Insulated |
| Flange Diameter: | 0.219" (5.56mm) |
| Diameter - Turret Head: | 0.151" ~ 0.156" (3.83mm ~ 3.96mm) |
| Detailed Description: | Terminal Turret Connector Single End, Fork, Hollow 0.500" (12.70mm) Tin |
| Contact Material: | Brass Alloy |
| Contact Finish Thickness: | - |
| Contact Finish: | Tin |
| Board Thickness: | 0.126" (3.20mm) |
| Email: | info@cjjhk.com |
Introduce
We can supply H2039-01, use the request quote form to request H2039-01 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number H2039-01.The price and lead time for H2039-01 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# H2039-01.We look forward to working with you to establish long-term relations of cooperation
