H11AV1SM
onsemi

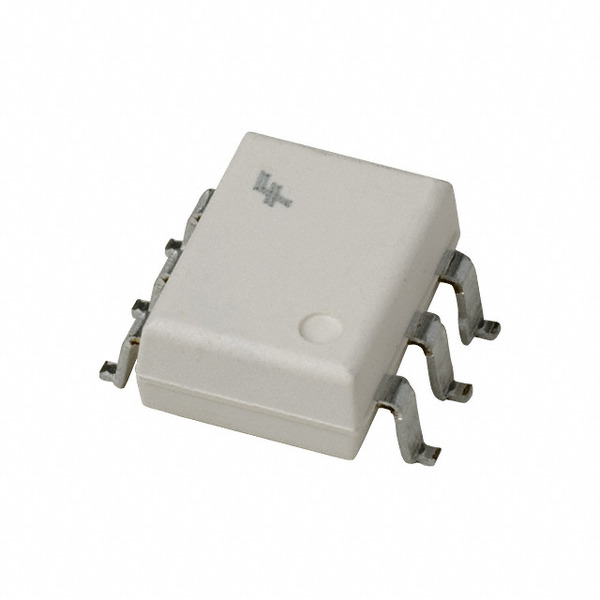

Images are for reference only.
See Product Specifications for product details.
Buy H11AV1SM with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy H11AV1SM with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | H11AV1SM |
|---|---|
| Manufacturer | onsemi |
| Description | Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP SMD White Bulk |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.407 | $0.367 | $0.331 | $0.324 | ||
Specifications
Data sheet
| Voltage - Output (Max): | 70V |
|---|---|
| Voltage - Isolation: | 4170Vrms |
| Voltage - Forward (Vf) (Typ): | 1.18V |
| Vce Saturation (Max): | 400mV |
| Turn On / Turn Off Time (Typ): | 15µs, 15µs (Max) |
| Supplier Device Package: | 6-SMD |
| Series: | - |
| Rise / Fall Time (Typ): | - |
| Packaging: | Tube |
| Package / Case: | 6-SMD, Gull Wing |
| Output Type: | Transistor with Base |
| Operating Temperature: | -40°C ~ 100°C |
| Number of Channels: | 1 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 9 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Type: | DC |
| Detailed Description: | Optoisolator Transistor with Base Output 4170Vrms 1 Channel 6-SMD |
| Current Transfer Ratio (Min): | 100% @ 10mA |
| Current Transfer Ratio (Max): | 300% @ 10mA |
| Current - Output / Channel: | - |
| Current - DC Forward (If) (Max): | 60mA |
| Email: | info@cjjhk.com |
Introduce
We can supply H11AV1SM, use the request quote form to request H11AV1SM pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number H11AV1SM.The price and lead time for H11AV1SM depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# H11AV1SM.We look forward to working with you to establish long-term relations of cooperation
