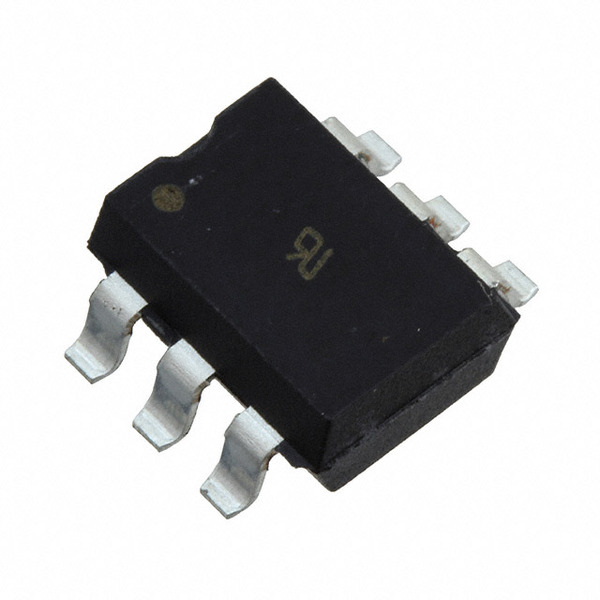

H11AA1-X009
Vishay / Semiconductor - Opto Division
Images are for reference only.
See Product Specifications for product details.
Buy H11AA1-X009 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy H11AA1-X009 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | H11AA1-X009 |
|---|---|
| Manufacturer | Vishay / Semiconductor - Opto Division |
| Description | OPTOISO 5.3KV TRANS W/BASE 6SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $1.39 | $1.128 | $0.868 | $0.781 | $0.694 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.59 | $0.486 | $0.462 | $0.451 | ||
Specifications
Data sheet
| Voltage - Output (Max): | 30V |
|---|---|
| Voltage - Isolation: | 5300Vrms |
| Voltage - Forward (Vf) (Typ): | 1.2V |
| Vce Saturation (Max): | 400mV |
| Turn On / Turn Off Time (Typ): | - |
| Supplier Device Package: | 6-SMD |
| Series: | - |
| Rise / Fall Time (Typ): | - |
| Packaging: | Tube |
| Package / Case: | 6-SMD, Gull Wing |
| Output Type: | Transistor with Base |
| Operating Temperature: | -55°C ~ 100°C |
| Number of Channels: | 1 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Type: | AC, DC |
| Detailed Description: | Optoisolator Transistor with Base Output 5300Vrms 1 Channel 6-SMD |
| Current Transfer Ratio (Min): | 20% @ 10mA |
| Current Transfer Ratio (Max): | - |
| Current - Output / Channel: | - |
| Current - DC Forward (If) (Max): | 60mA |
| Email: | info@cjjhk.com |
Introduce
We can supply H11AA1-X009, use the request quote form to request H11AA1-X009 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number H11AA1-X009.The price and lead time for H11AA1-X009 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# H11AA1-X009.We look forward to working with you to establish long-term relations of cooperation
