H100AA2F205NQ
C&K

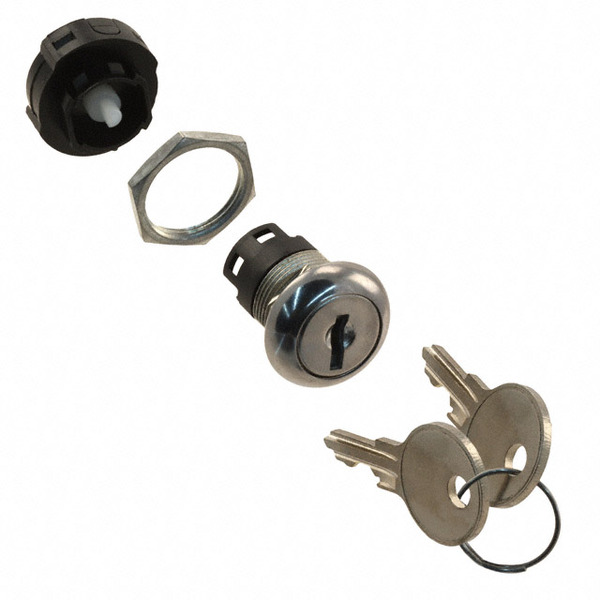

Images are for reference only.
See Product Specifications for product details.
Buy H100AA2F205NQ with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy H100AA2F205NQ with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | H100AA2F205NQ |
|---|---|
| Manufacturer | C&K |
| Description | SWITCH KEYLCK 3POS SP3T 12A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $16.34 | $15.526 | $14.709 | $14.301 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $13.075 | $11.849 | $11.44 | |||
Specifications
Data sheet
| Voltage Rating - DC: | 125V |
|---|---|
| Voltage Rating - AC: | 125V |
| Termination Style: | Quick Connect - 0.110" (2.8mm) |
| Switch Function: | On-On-On |
| Series: | H |
| Panel Cutout Dimensions: | Circular - 19.30mm Dia |
| Other Names: | *H100AA2F205NQ CKN10111 H100AA2F205NQ-ND |
| Operating Temperature: | -30°C ~ 85°C |
| Number of Positions: | 3 |
| Mounting Type: | Panel Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | - |
| Manufacturer Standard Lead Time: | 11 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Key Removable Positions: | All |
| Features: | Epoxy Sealed Terminals |
| Electrical Life: | 10,000 Cycles |
| Detailed Description: | Keylock Switch 3 Position SP3T 12A (AC), 1A (DC) 125VAC 125VDC Panel Mount |
| Depth Behind Flange: | 36.61mm |
| Current Rating: | 12A (AC), 1A (DC) |
| Contact Timing: | Not Specified |
| Contact Material: | Copper |
| Contact Finish: | Silver |
| Circuit: | SP3T |
| Angle of Throw: | 45° |
| Actuator Type: | Flat Key |
| Email: | info@cjjhk.com |
Introduce
We can supply H100AA2F205NQ, use the request quote form to request H100AA2F205NQ pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number H100AA2F205NQ.The price and lead time for H100AA2F205NQ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# H100AA2F205NQ.We look forward to working with you to establish long-term relations of cooperation
