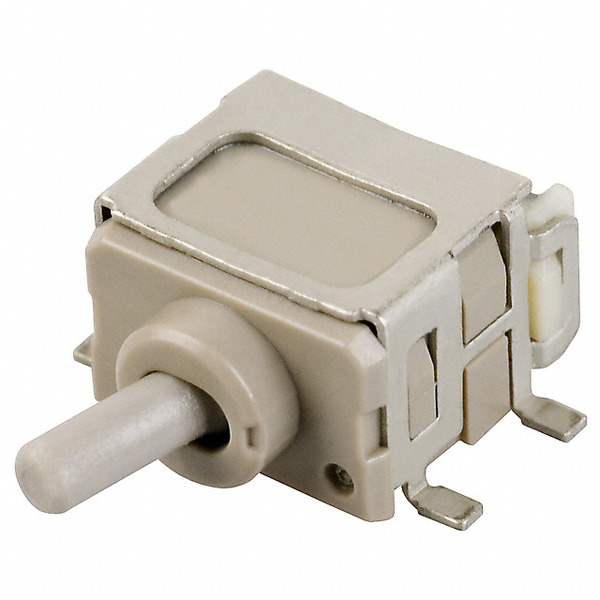

G3T12AH-R
NKK Switches
Images are for reference only.
See Product Specifications for product details.
Buy G3T12AH-R with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy G3T12AH-R with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | G3T12AH-R |
|---|---|
| Manufacturer | NKK Switches |
| Description | Switch; Sealed; Toggle; SPDT; ON-NONE-ON; 0.4VA; 28VAC/DC; Gull Wing for R/A Mnt; T/R |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $4.575 | $4.13 | $3.725 | $3.644 | ||
Specifications
Data sheet
| Voltage Rating - DC: | 28V |
|---|---|
| Voltage Rating - AC: | 28V |
| Termination Style: | Gull Wing |
| Switch Function: | On-On |
| Series: | G3T |
| Panel Cutout Dimensions: | - |
| Packaging: | Cut Tape (CT) |
| Other Names: | 360-1024-1 360-1024-1-ND 360-1773-1 |
| Operating Temperature: | -30°C ~ 85°C |
| Mounting Type: | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Illumination Voltage (Nominal): | - |
| Illumination Type, Color: | - |
| Illumination: | Non-Illuminated |
| Features: | Process Sealed |
| Electrical Life: | 50,000 Cycles |
| Detailed Description: | Toggle Switch SPDT Surface Mount, Right Angle |
| Current Rating: | 0.4VA (AC/DC) |
| Circuit: | SPDT |
| Bushing Thread: | Unthreaded |
| Actuator Type: | Standard Round |
| Actuator Material: | Polyphenylene Sulfide (PPS) |
| Actuator Length: | 3.81mm |
| Email: | info@cjjhk.com |
Introduce
We can supply G3T12AH-R, use the request quote form to request G3T12AH-R pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number G3T12AH-R.The price and lead time for G3T12AH-R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# G3T12AH-R.We look forward to working with you to establish long-term relations of cooperation
