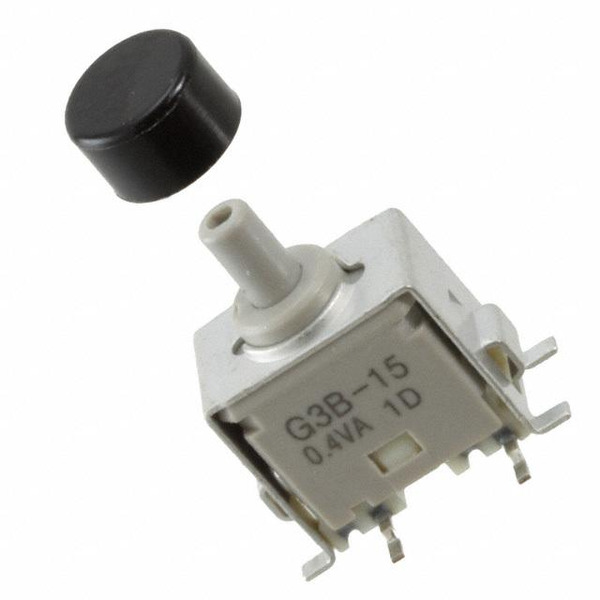

G3B15AB-XA
NKK Switches
Images are for reference only.
See Product Specifications for product details.
Buy G3B15AB-XA with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy G3B15AB-XA with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | G3B15AB-XA |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH PUSH SPDT 0.4VA 28V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.40 | $5.928 | $5.772 | $5.616 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $5.304 | $5.148 | $4.836 | $4.368 | ||
Specifications
Data sheet
| Voltage Rating - DC: | 28V |
|---|---|
| Voltage Rating - AC: | 28V |
| Type: | Standard |
| Termination Style: | Gull Wing |
| Switch Function: | On-Mom |
| Series: | G3B |
| Panel Cutout Dimensions: | - |
| Packaging: | Tray |
| Other Names: | 360-2792 G3B15AB-XA-ND G3B15AB-XA-RO G3B15AB-XA-RO-ND G3B15ABXA |
| Operating Temperature: | -30°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | 50,000 Cycles |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Illumination Voltage (Nominal): | - |
| Illumination Type, Color: | - |
| Features: | Process Sealed |
| Electrical Life: | 50,000 Cycles |
| Detailed Description: | Pushbutton Switch SPDT Standard Surface Mount |
| Current Rating: | 0.4VA (AC/DC) |
| Color - Actuator/Cap: | Black |
| Circuit: | SPDT |
| Actuator Type: | Round, Button |
| Email: | info@cjjhk.com |
Introduce
We can supply G3B15AB-XA, use the request quote form to request G3B15AB-XA pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number G3B15AB-XA.The price and lead time for G3B15AB-XA depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# G3B15AB-XA.We look forward to working with you to establish long-term relations of cooperation
