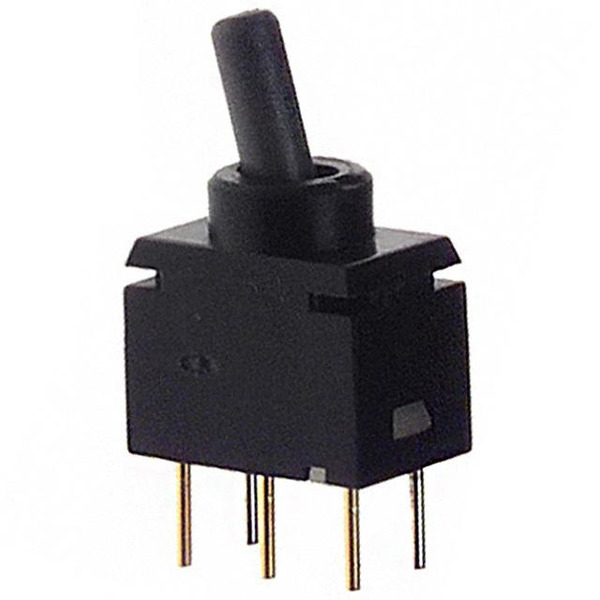

G12AP
NKK Switches
Images are for reference only.
See Product Specifications for product details.
Buy G12AP with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy G12AP with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | G12AP |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH TOGGLE SPDT 0.4VA 28V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.03 | $3.864 | $3.696 | $3.528 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.192 | $2.94 | $2.688 | $2.352 | ||
Specifications
Data sheet
| Voltage Rating - DC: | 28V |
|---|---|
| Voltage Rating - AC: | 28V |
| Termination Style: | PC Pin |
| Switch Function: | On-On |
| Series: | G |
| Panel Cutout Dimensions: | - |
| Packaging: | Bulk |
| Other Names: | 360-1701 360-1701-ND 360-1758 G12AP-RO |
| Operating Temperature: | -25°C ~ 85°C |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Illumination Voltage (Nominal): | - |
| Illumination Type, Color: | - |
| Illumination: | Non-Illuminated |
| Features: | Process Sealed |
| Electrical Life: | 100,000 Cycles |
| Detailed Description: | Toggle Switch SPDT Through Hole |
| Current Rating: | 0.4VA (AC/DC) |
| Circuit: | SPDT |
| Bushing Thread: | Unthreaded |
| Actuator Type: | Standard Round |
| Actuator Material: | Polyamide (PA), Nylon, Glass Filled |
| Actuator Length: | 3.80mm |
| Email: | info@cjjhk.com |
Introduce
We can supply G12AP, use the request quote form to request G12AP pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number G12AP.The price and lead time for G12AP depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# G12AP.We look forward to working with you to establish long-term relations of cooperation
