FSCQ0765RTYDTU
onsemi

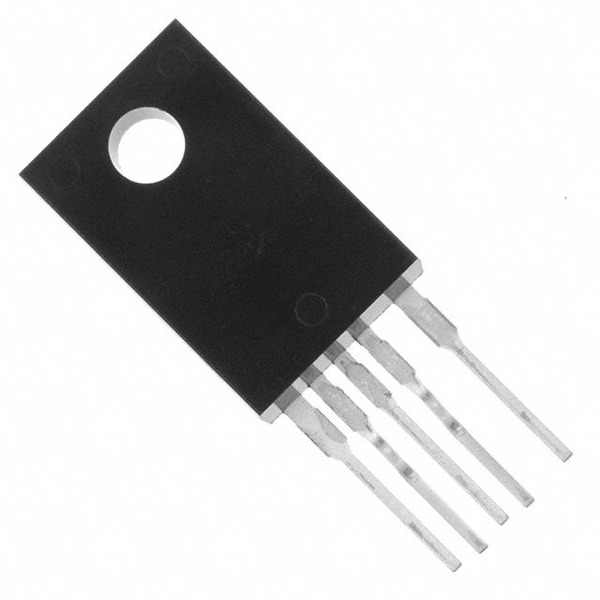

Images are for reference only.
See Product Specifications for product details.
Buy FSCQ0765RTYDTU with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy FSCQ0765RTYDTU with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | FSCQ0765RTYDTU |
|---|---|
| Manufacturer | onsemi |
| Description | 650V Integrated Power Switch for 85Watt offline flyback converters |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $2.448 | $2.209 | $1.993 | $1.949 | ||
Specifications
Data sheet
| Voltage - Supply (Vcc/Vdd): | 9 V ~ 20 V |
|---|---|
| Voltage - Start Up: | 15V |
| Voltage - Breakdown: | 650V |
| Topology: | Flyback |
| Supplier Device Package: | TO-220F-5L (Forming) |
| Series: | FSCQ |
| Power (Watts): | 100W |
| Packaging: | Tube |
| Package / Case: | TO-220-5 Full Pack (Formed Leads) |
| Output Isolation: | Isolated |
| Other Names: | FSCQ0765RTYDTU_NL FSCQ0765RTYDTU_NL-ND |
| Operating Temperature: | -25°C ~ 85°C (TA) |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Internal Switch(s): | Yes |
| Frequency - Switching: | 20kHz |
| Fault Protection: | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Duty Cycle: | 95% |
| Detailed Description: | Converter Offline Flyback Topology 20kHz TO-220F-5L (Forming) |
| Control Features: | Sync |
| Base Part Number: | FSCQ0765 |
| Email: | info@cjjhk.com |
Introduce
We can supply FSCQ0765RTYDTU, use the request quote form to request FSCQ0765RTYDTU pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FSCQ0765RTYDTU.The price and lead time for FSCQ0765RTYDTU depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FSCQ0765RTYDTU.We look forward to working with you to establish long-term relations of cooperation
