FPF2200
onsemi

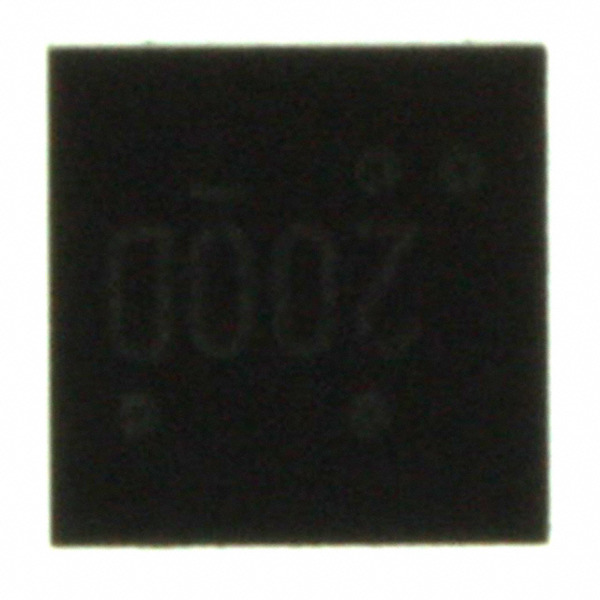

Images are for reference only.
See Product Specifications for product details.
Buy FPF2200 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy FPF2200 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | FPF2200 |
|---|---|
| Manufacturer | onsemi |
| Description | FPF2200 Series 5.5 V 500 mA 185 mOhm High Side Load Switch SOT-23-5 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.449 | $0.405 | $0.365 | $0.357 | ||
Specifications
Data sheet
| Voltage - Supply (Vcc/Vdd): | Not Required |
|---|---|
| Voltage - Load: | 1.8 V ~ 5.5 V |
| Switch Type: | General Purpose |
| Supplier Device Package: | 6-MicroFET (2x2) |
| Series: | - |
| Rds On (Typ): | 140 mOhm |
| Ratio - Input:Output: | 1:1 |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 6-VDFN Exposed Pad |
| Output Type: | P-Channel |
| Output Configuration: | High Side |
| Other Names: | FPF2200TR |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Number of Outputs: | 1 |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Interface: | On/Off |
| Input Type: | Non-Inverting |
| Features: | Auto Restart, Load Discharge, Status Flag |
| Fault Protection: | Current Limiting (Fixed), Over Temperature, UVLO |
| Current - Output (Max): | 500mA |
| Base Part Number: | FPF2200 |
| Email: | info@cjjhk.com |
Introduce
We can supply FPF2200, use the request quote form to request FPF2200 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FPF2200.The price and lead time for FPF2200 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FPF2200.We look forward to working with you to establish long-term relations of cooperation
